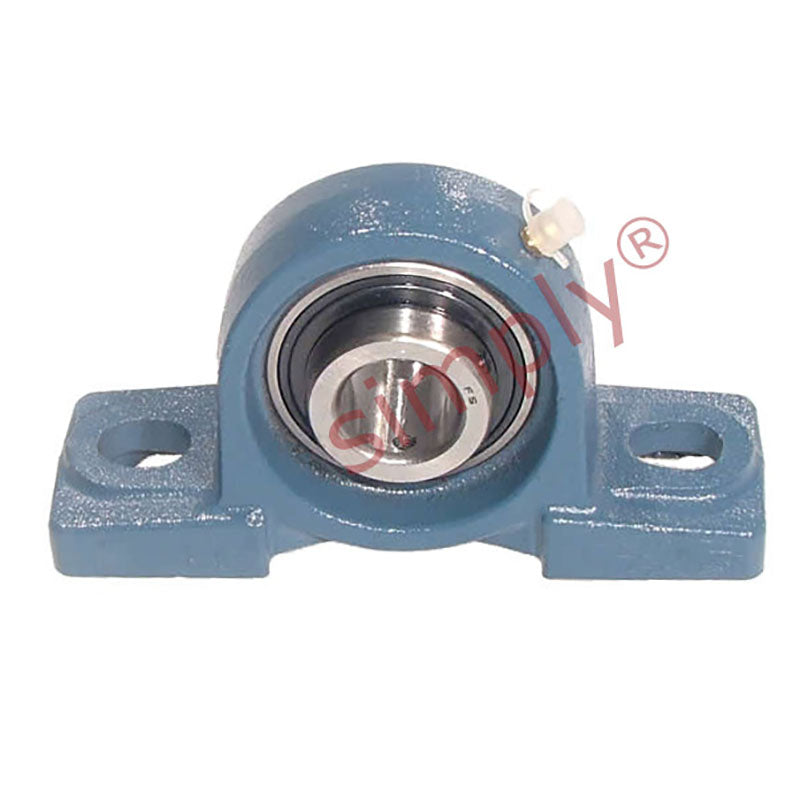

• UCP209-26 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/8 inch Bore Insert
1 1

SKU: UCP.209-26

UCP209-26 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/8 inch Bore Insert

UCP209-26 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/8 inch Bore Insert
$36.79 ex VAT
$36.79 ex VAT
Sale Sold out

Equivalent to: NP45

In stock

Price Break
3+ $24.65
4+ $23.26
9+ $22.99
19+ $22.71
49+ $22.43
99+ $22.15
499+ $20.77
999+ $20.49
1999+ $20.22
2999+ $19.94
4999+ $19.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Style:
UCP
Bolt Hole Centres:
146mm
Technical
d 1-5/8 inch
h 54mm
a 190mm
e 146mm
b 54mm
s2 21mm
s1 17mm
g 20mm
w 106mm
B1 49.2mm
n 19mm
Bolt Size M14
Weight 2.2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 3700 rpm
