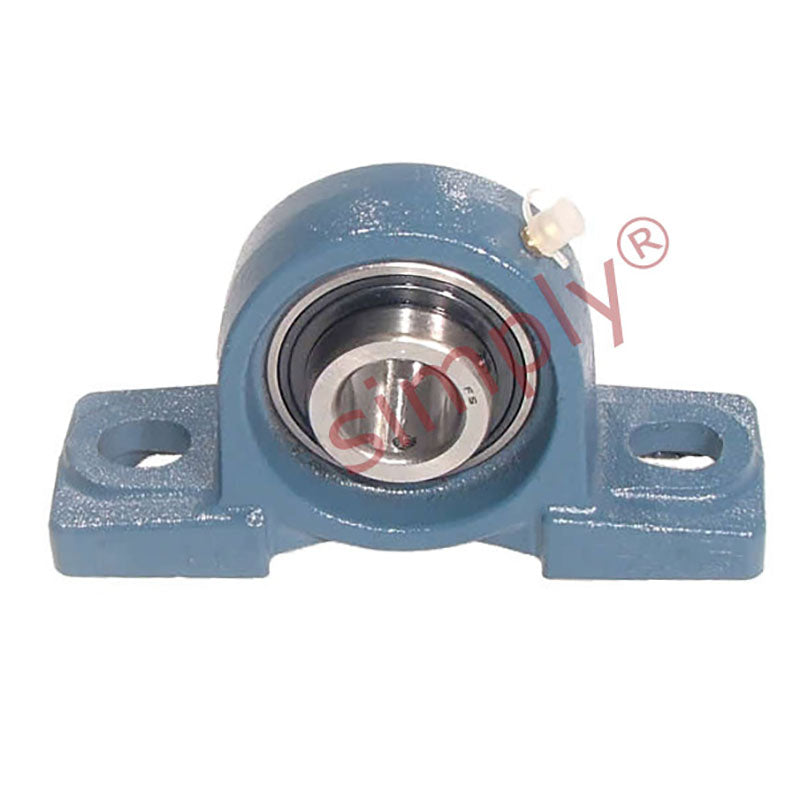

• UCP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
1 1

SKU: UCP.210

UCP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert

UCP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
$42.61 ex VAT
$42.61 ex VAT
Sale Sold out

Equivalent to: NP50

In stock

Price Break
3+ $28.54
4+ $26.94
9+ $26.62
19+ $26.30
49+ $25.98
99+ $25.66
499+ $24.05
999+ $23.73
1999+ $23.41
2999+ $23.09
4999+ $22.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Style:
UCP
Bolt Hole Centres:
159mm
Technical
d 50mm
h 57.2mm
a 206mm
e 159mm
b 60mm
s2 25mm
s1 20mm
g 22mm
w 112mm
B1 51.6mm
n 19mm
Bolt Size M16
Weight 2.8 kg
Dynamic load 2750 kgf
Static load 2020 kgf
Rec max speed 3400 rpm
