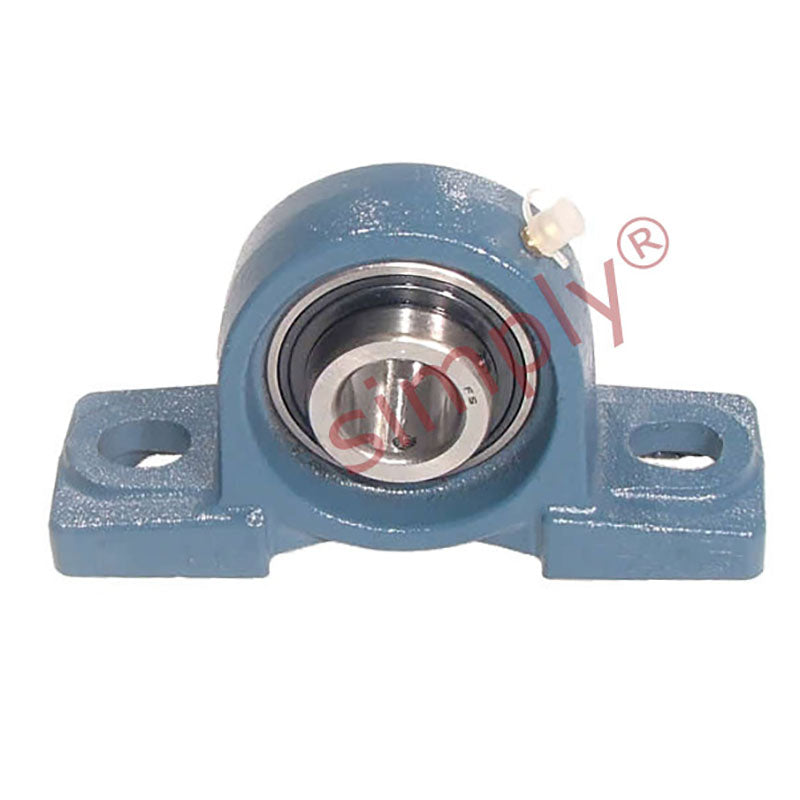

• UCP210-30 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/8 inch Bore Insert
1 1

SKU: UCP.210-30

UCP210-30 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/8 inch Bore Insert

UCP210-30 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/8 inch Bore Insert
$49.36 ex VAT
$49.36 ex VAT
Sale Sold out

Equivalent to: NP50

In stock

Price Break
3+ $33.06
4+ $31.20
9+ $30.83
19+ $30.46
49+ $30.09
99+ $29.72
499+ $27.86
999+ $27.49
1999+ $27.12
2999+ $26.75
4999+ $26.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
47.63mm = 1.875 (1-7/8) inch
Style:
UCP
Bolt Hole Centres:
159mm
Technical
d 1-7/8 inch
h 57.2mm
a 206mm
e 159mm
b 60mm
s2 25mm
s1 20mm
g 22mm
w 112mm
B1 51.6mm
n 19mm
Bolt Size M16
Weight 2.8 kg
Dynamic load 2750 kgf
Static load 2020 kgf
Rec max speed 3400 rpm
