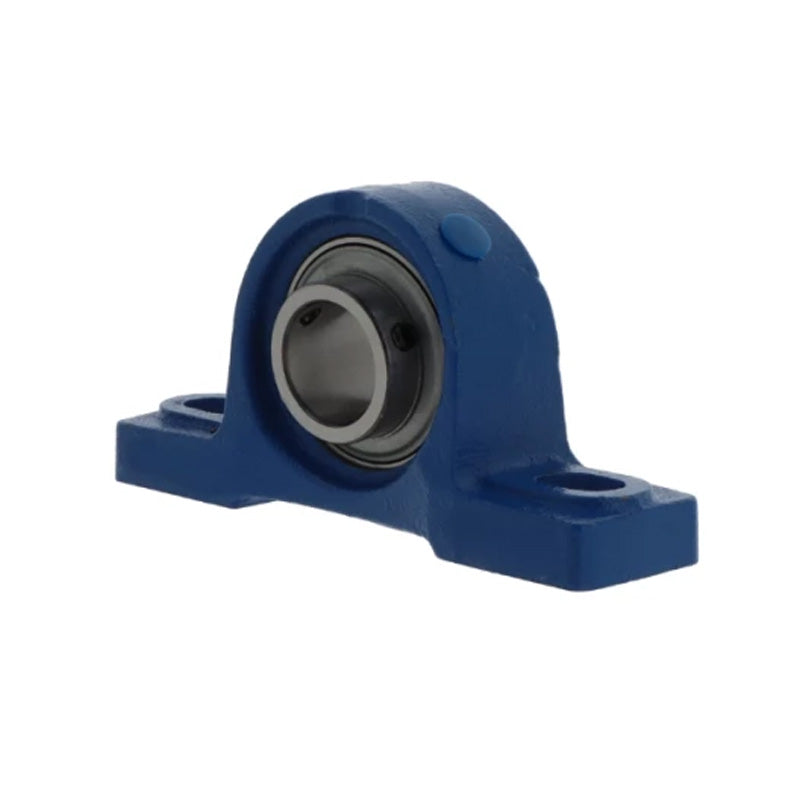

• Challenge / FK UCP210 Metric Cast Iron Two Bolt Pillow Block Housing with 50mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCP.210.TS.CHAL

Challenge / FK UCP210 Metric Cast Iron Two Bolt Pillow Block Housing with 50mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCP210 Metric Cast Iron Two Bolt Pillow Block Housing with 50mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$95.44 ex VAT
$95.44 ex VAT
Sale Sold out

Equivalent to: UCP.210

In stock

Price Break
3+ $63.93
5+ $60.34
9+ $59.62
19+ $58.90
49+ $58.18
74+ $57.46
99+ $53.87
199+ $53.15
249+ $52.44
499+ $51.72
999+ $50.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
50mm
Style:
UCP
Bolt Hole Centres:
159mm
Technical
Shaft Diameter d 50mm
Casting Centre Line Height h 57.2mm
Casting Length a 206mm
Recommended Bolt Centres l 159mm
Casting Width b 60mm
Slot Length s<sub>2</sub> 23mm
Slot Width s<sub>1</sub> 20mm
Foot Height g 21mm
Overall Height w 113mm
Bearing Insert Width Bi 51.6mm
Back of Bearing to Centre Line n 19mm
Bolt Size M16
Grub Screws x 2 M10x1.25mm
Load Rating (Dynamic) 2750kg
Load Rating (Static) 2020kg
Max Speed 1800 rev/min
Grease Nipple Thread Size M8
Working Temperature -30&deg;C to +120&deg;C
Insert No UC210
Housing No P210
