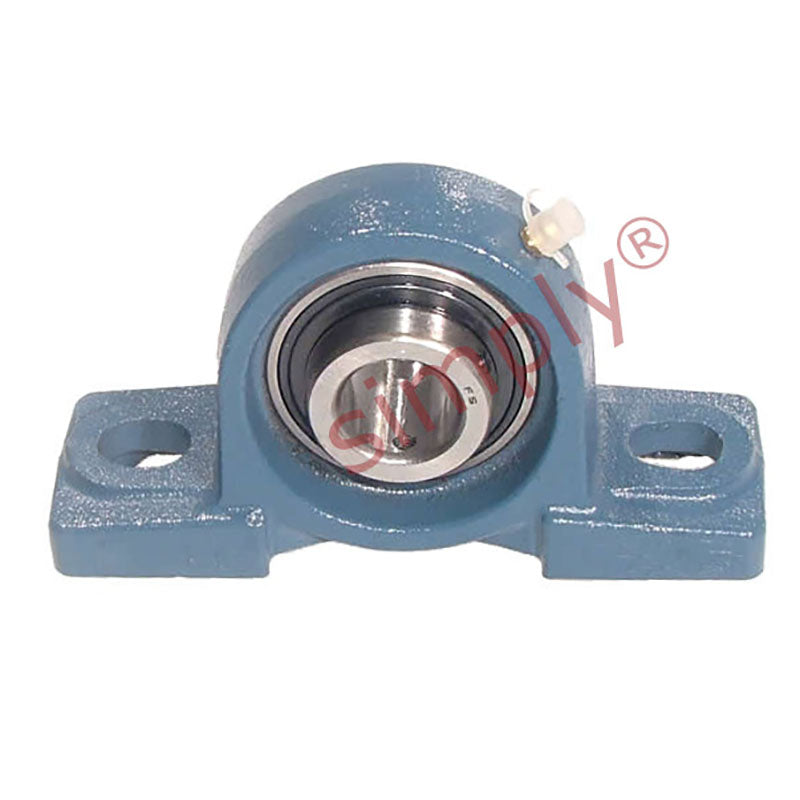

• UCP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert
1 1

SKU: UCP.211

UCP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert

UCP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert
$51.71 ex VAT
$51.71 ex VAT
Sale Sold out

Equivalent to: NP55

In stock

Price Break
3+ $34.64
4+ $32.70
9+ $32.31
19+ $31.92
49+ $31.53
99+ $31.14
499+ $29.19
999+ $28.80
1999+ $28.41
2999+ $28.02
4999+ $27.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
55mm
Style:
UCP
Bolt Hole Centres:
171mm
Technical
d 55mm
h 63.5mm
a 219mm
e 171mm
b 60mm
s2 25mm
s1 20mm
g 22mm
w 126mm
B1 55.6mm
n 22.2mm
Bolt Size M16
Weight 3.4 kg
Dynamic load 3400 kgf
Static load 2550 kgf
Rec max speed 3100 rpm
