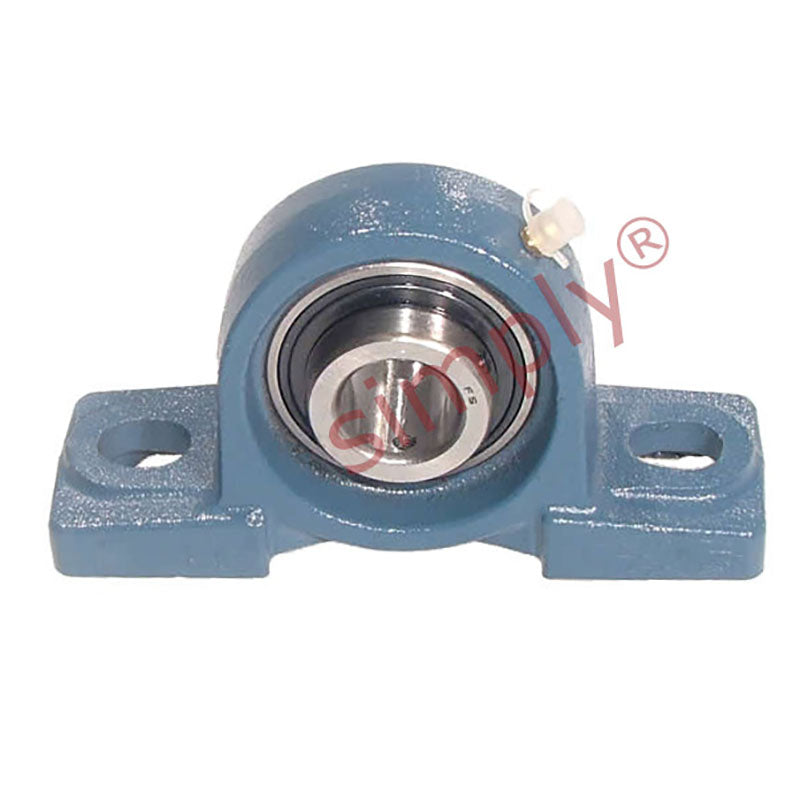

• UCP212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert
1 1

SKU: UCP.212-36

UCP212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert

UCP212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert
$73.22 ex VAT
$73.22 ex VAT
Sale Sold out

Equivalent to: NP2.1/4

In stock

Price Break
3+ $49.05
4+ $46.29
9+ $45.74
19+ $45.19
49+ $44.64
99+ $44.09
499+ $41.33
999+ $40.78
1999+ $40.23
2999+ $39.68
4999+ $38.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Style:
UCP
Bolt Hole Centres:
184mm
Technical
d 2-1/4 inch
h 69.8mm
a 241mm
e 184mm
b 70mm
s2 25mm
s1 20mm
g 25mm
w 137mm
B1 65.1mm
n 25.4mm
Bolt Size M16
Weight 4.8 kg
Dynamic load 4100 kgf
Static load 3150 kgf
Rec max speed 2800 rpm
