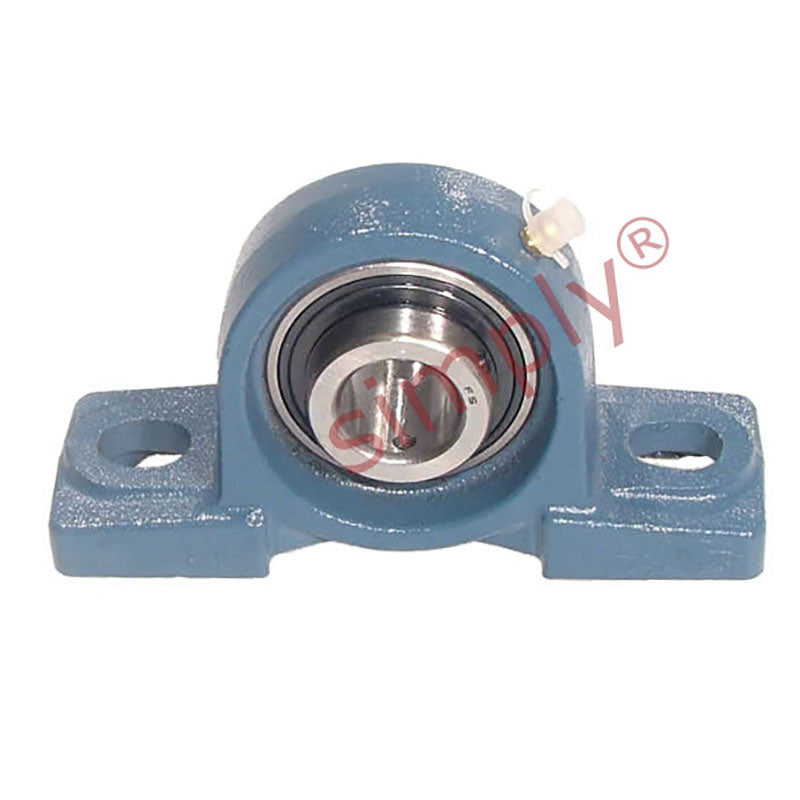

• UCP212-39 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert
1 1

SKU: UCP.212-39

UCP212-39 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert

UCP212-39 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert
$93.14 ex VAT
$93.14 ex VAT
Sale Sold out

In stock

Price Break
3+ $62.39
4+ $58.89
9+ $58.19
19+ $57.49
49+ $56.78
99+ $56.08
499+ $52.58
999+ $51.88
1999+ $51.18
2999+ $50.48
4999+ $49.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Style:
UCP
Bolt Hole Centres:
184mm
Technical
d 2-7/16 inch
h 69.8mm
a 241mm
e 184mm
b 70mm
s2 25mm
s1 20mm
g 25mm
w 137mm
B1 65.1mm
n 25.4mm
Bolt Size M16
Weight 4.8 kg
Dynamic load 4100 kgf
Static load 3150 kgf
