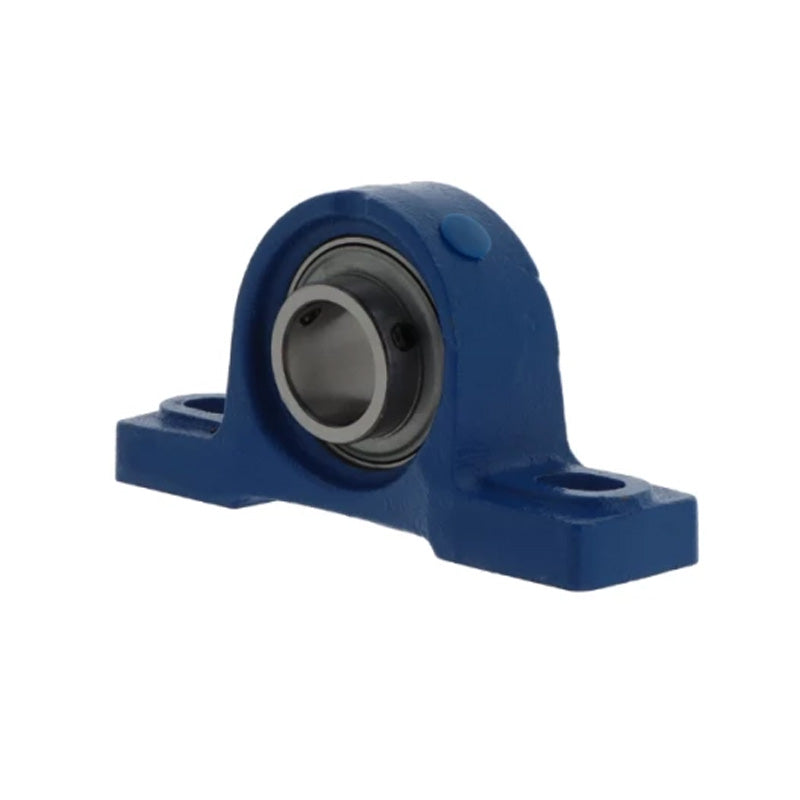

• Challenge / FK UCP212 Metric Cast Iron Two Bolt Pillow Block Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCP.212.TS.CHAL

Challenge / FK UCP212 Metric Cast Iron Two Bolt Pillow Block Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCP212 Metric Cast Iron Two Bolt Pillow Block Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$153.19 ex VAT
$153.19 ex VAT
Sale Sold out

Equivalent to: UCP.212

In stock

Price Break
3+ $102.61
5+ $96.84
9+ $95.69
19+ $94.54
49+ $93.38
74+ $92.23
99+ $86.47
199+ $85.31
249+ $84.16
499+ $83.01
999+ $80.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
60mm
Style:
UCP
Bolt Hole Centres:
184mm
Technical
Shaft Diameter d 60mm
Casting Centre Line Height h 69.8mm
Casting Length a 241mm
Recommended Bolt Centres l 184mm
Casting Width b 70mm
Slot Length s<sub>2</sub> 23mm
Slot Width s<sub>1</sub> 20mm
Foot Height g 25mm
Overall Height w 138mm
Bearing Insert Width Bi 65.1mm
Back of Bearing to Centre Line n 25.4mm
Bolt Size M16
Grub Screws x 2 M10x1.25mm
Load Rating (Dynamic) 4100kg
Load Rating (Static) 3150kg
Max Speed 1500 rev/min
Grease Nipple Thread Size M8
Working Temperature -30&deg;C to +120&deg;C
Insert No UC212
Housing No P212
