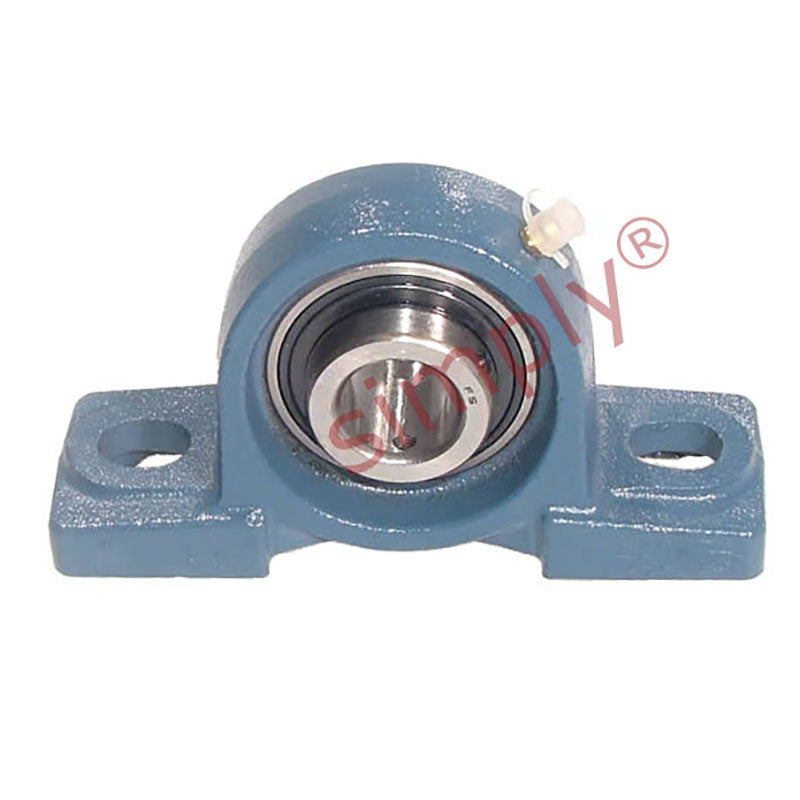

• UCP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert
1 1

SKU: UCP.216

UCP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert

UCP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert
$117.26 ex VAT
$117.26 ex VAT
Sale Sold out

Equivalent to: NP80

In stock

Price Break
3+ $78.54
4+ $74.13
9+ $73.25
19+ $72.37
49+ $71.48
99+ $70.60
499+ $66.19
999+ $65.31
1999+ $64.42
2999+ $63.54
4999+ $61.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
80mm
Style:
UCP
Bolt Hole Centres:
232mm
Technical
d 80mm
h 88.9mm
a 292mm
e 232mm
b 78mm
s2 31mm
s1 25mm
g 30mm
w 175mm
B1 82.6mm
n 33.3mm
Bolt Size M20
Weight 9 kg
Dynamic load 5700 kgf
Static load 4550 kgf
Rec max speed 2150 rpm
