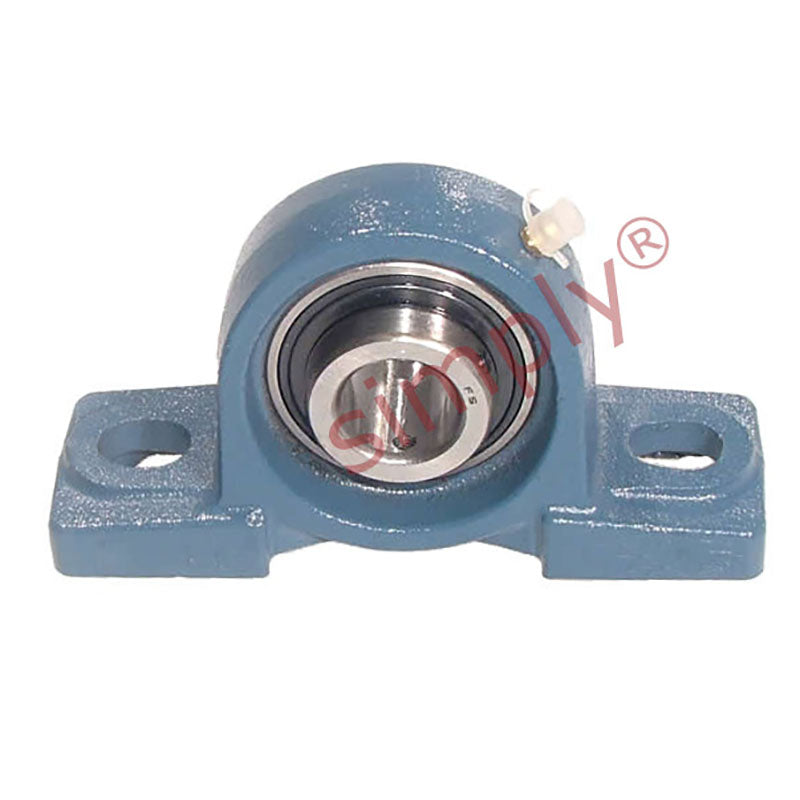

• UCP217 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert
1 1

SKU: UCP.217

UCP217 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert

UCP217 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert
$152.57 ex VAT
$152.57 ex VAT
Sale Sold out

Equivalent to: NP85

In stock

Price Break
3+ $102.20
4+ $96.46
9+ $95.31
19+ $94.16
49+ $93.01
99+ $91.87
499+ $86.12
999+ $84.98
1999+ $83.83
2999+ $82.68
4999+ $80.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
85mm
Style:
UCP
Bolt Hole Centres:
247mm
Technical
d 85mm
h 95.2mm
a 310mm
e 247mm
b 83mm
s2 31mm
s1 25mm
g 32mm
w 187mm
B1 85.7mm
n 34.1mm
Bolt Size M20
Weight 11.5 kg
Dynamic load 6600 kgf
Static load 5320 kgf
Rec max speed 2000 rpm
