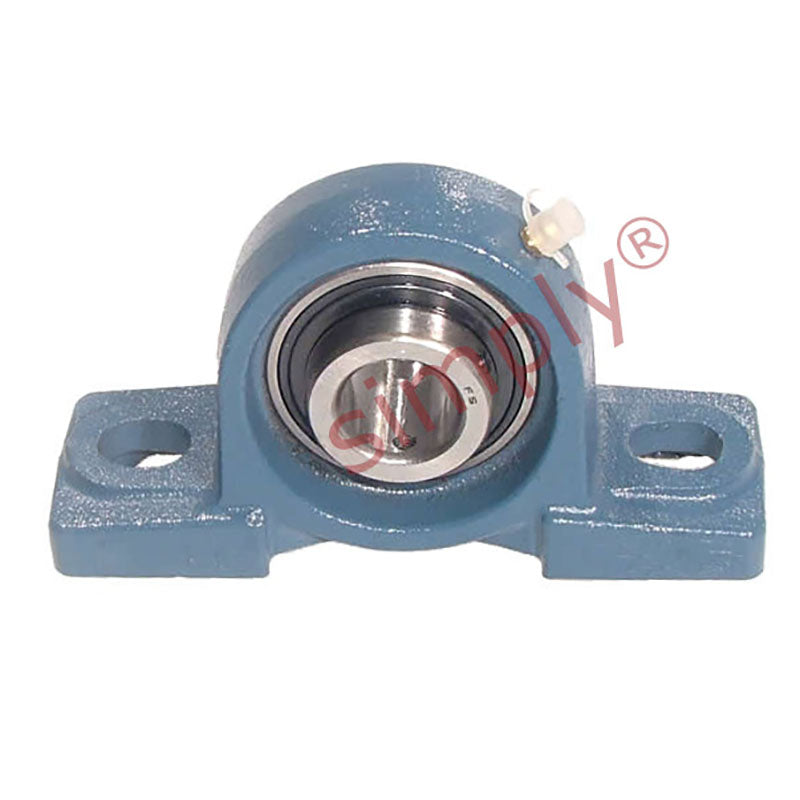

• UCP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert
1 1

SKU: UCP.218

UCP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert

UCP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert
$170.27 ex VAT
$170.27 ex VAT
Sale Sold out

Equivalent to: NP90

In stock

Price Break
3+ $114.06
4+ $107.65
9+ $106.37
19+ $105.09
49+ $103.80
99+ $102.52
499+ $96.11
999+ $94.83
1999+ $93.55
2999+ $92.27
4999+ $89.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
90mm
Style:
UCP
Bolt Hole Centres:
262mm
Technical
d 90mm
h 101.6mm
a 327mm
e 262mm
b 88mm
s2 33mm
s1 27mm
g 34mm
w 200mm
B1 96mm
n 39.7mm
Bolt Size M22
Weight 14.3 kg
Dynamic load 7500 kgf
Static load 6170 kgf
Rec max speed 1900 rpm
