SKU: UCP.320-CLR

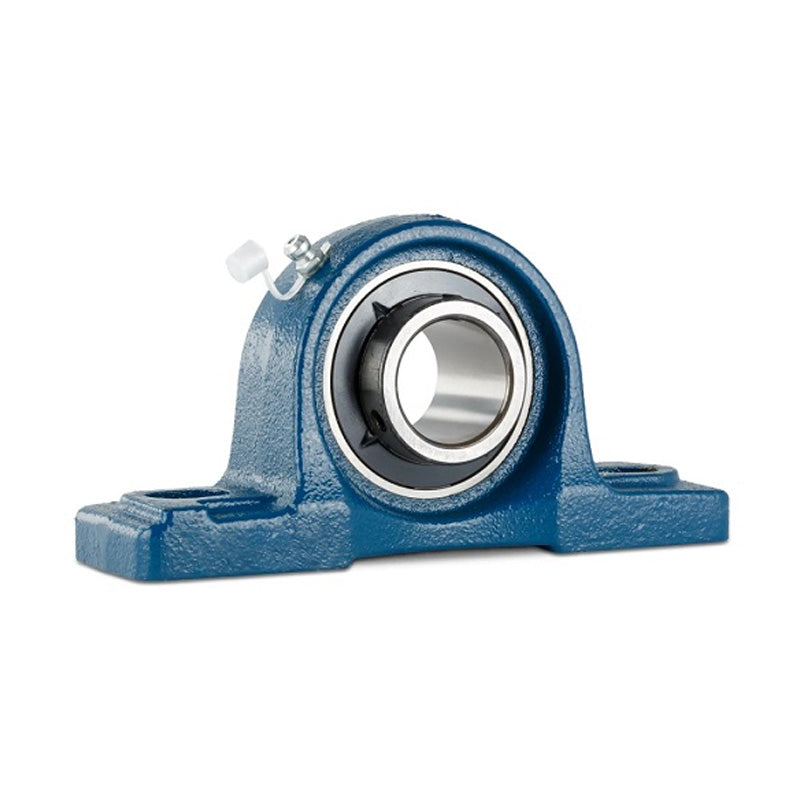

UCP320 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 100mm Bore Insert (Slight Corrosion to Insert)
UCP320 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 100mm Bore Insert (Slight Corrosion to Insert)
Regular price
$519.41
ex VAT
Regular price
Sale price
$519.41
ex VAT
Low stock
Price Break
10+
$347.91
19+
$328.37
29+
$324.46
39+
$320.55
49+
$316.64
74+
$312.73
99+
$293.19
199+
$289.28
249+
$285.37
499+
$281.46
999+
$273.64
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCP 300 Series Plummer / Pillow Housings: Note: The insert included in this housing had suffered from minor oxidation after being left unboxed in our warehouse, this has since been cleaned. However use of this insert is at the individuals own risk as corrosion may still be present. Supplied with a fully sealed bearing insert fitted in the housing. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
Technical
Technical
| d | 100mm |
|---|---|
| h | 140mm |
| a | 490mm |
| e | 380mm |
| b | 120mm |
| s2 | 50mm |
| s1 | 36mm |
| g | 50mm |
| w | 275mm |
| b1 | 108mm |
| n | 42mm |
| Bolt | 33mm |
| Weight | 28.6 kg |
| Dynamic load | 13580 kgf |
| Static load | 12860 kgf |
