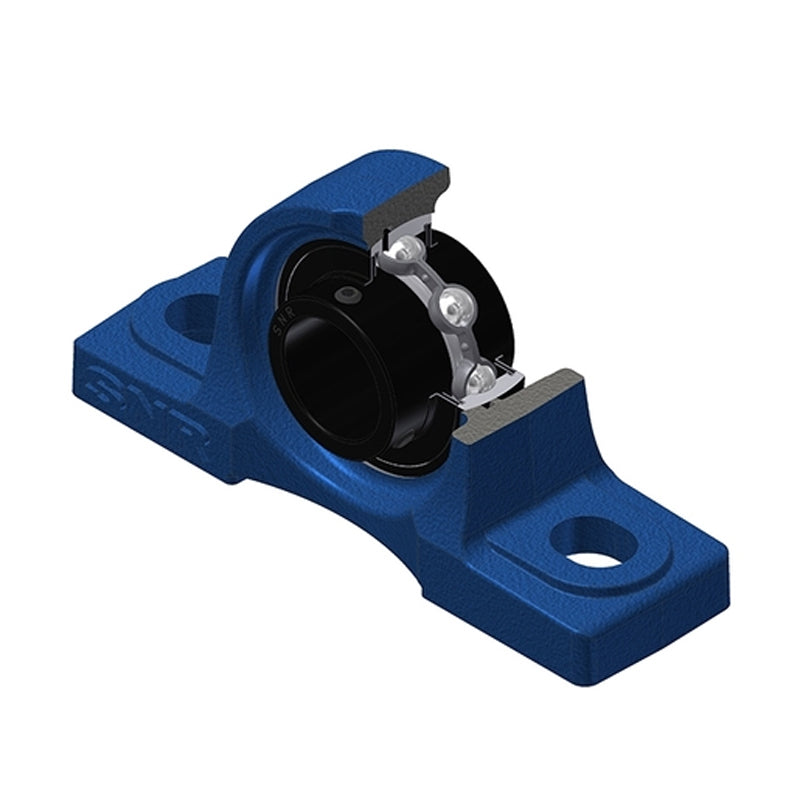

• SNR UCP206-18T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCP206-18T20-SNR

SNR UCP206-18T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP206-18T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
$103.02 ex VAT
$103.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.74
4+ $73.64
9+ $72.09
19+ $69.77
49+ $68.22
99+ $64.34
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Style:
UCP
Bolt Hole Centres:
121mm
Technical
--- Dimensions
Shaft diameter d 1-1/8 inch
A 48mm
A1 30mm
B 38.1mm
H 42.9mm
H1 18mm
H2 83mm
J 121mm
L 165mm
L1 54mm
N 17mm
N1 21mm
S 15.9mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 1.38 kg
Recommended tightening torque for set screw 3.7 Nm
