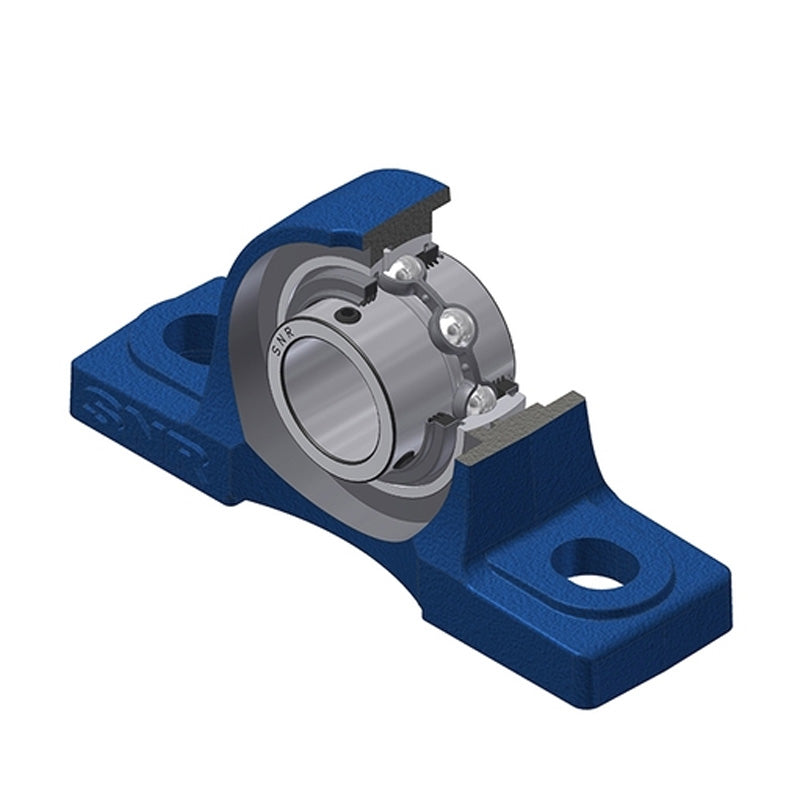

• SNR UCP206NL3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 30mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
  • SNR
1 2

SKU: UCP206NL3-SNR

SNR UCP206NL3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 30mm Bore Insert with Triple Lip Seal - Allow 2-3 Days

SNR UCP206NL3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 30mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
$63.26 ex VAT
$63.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $42.38
4+ $40.00
9+ $39.52
19+ $39.04
49+ $38.57
99+ $38.09
499+ $35.71
999+ $35.23
1999+ $34.76
2999+ $34.28
4999+ $33.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCP
Bolt Hole Centres:
121mm
Technical

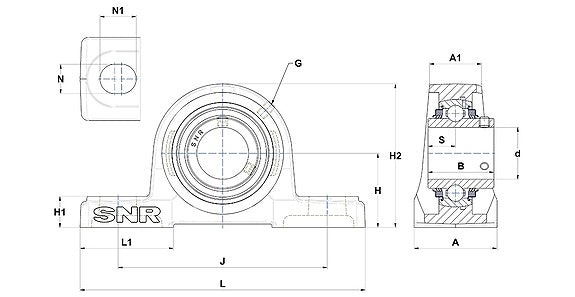

--- Dimensions
Shaft diameter d 30mm
A 48mm
A1 30mm
B 38.1mm
H 42.9mm
H1 18mm
H2 83mm
J 121mm
L 165mm
L1 54mm
N 17mm
N1 21mm
S 15.9mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.36 kg
Recommended tightening torque for set screw 5.5 Nm
