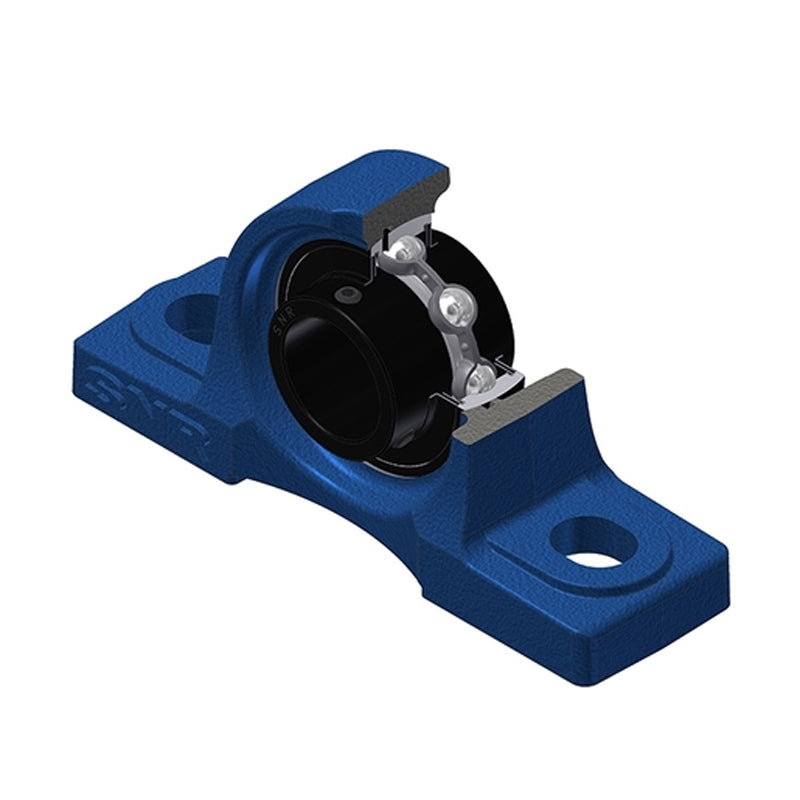

• SNR UCP206T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert Wide Temperature Version
  • SNR
1 2

SKU: UCP206T20-SNR

SNR UCP206T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert Wide Temperature Version

SNR UCP206T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert Wide Temperature Version
$40.57 ex VAT
$40.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
4+ $25.64
9+ $25.34
19+ $25.03
49+ $24.73
99+ $24.42
499+ $22.90
999+ $22.59
1999+ $22.29
2999+ $21.98
4999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCP
Bolt Hole Centres:
121mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 48mm
A1 30mm
B 38.1mm
H 42.9mm
H1 18mm
H2 83mm
J 121mm
L 165mm
L1 54mm
N 17mm
N1 21mm
S 15.9mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 1.36 kg
Recommended tightening torque for set screw 5.5 Nm
