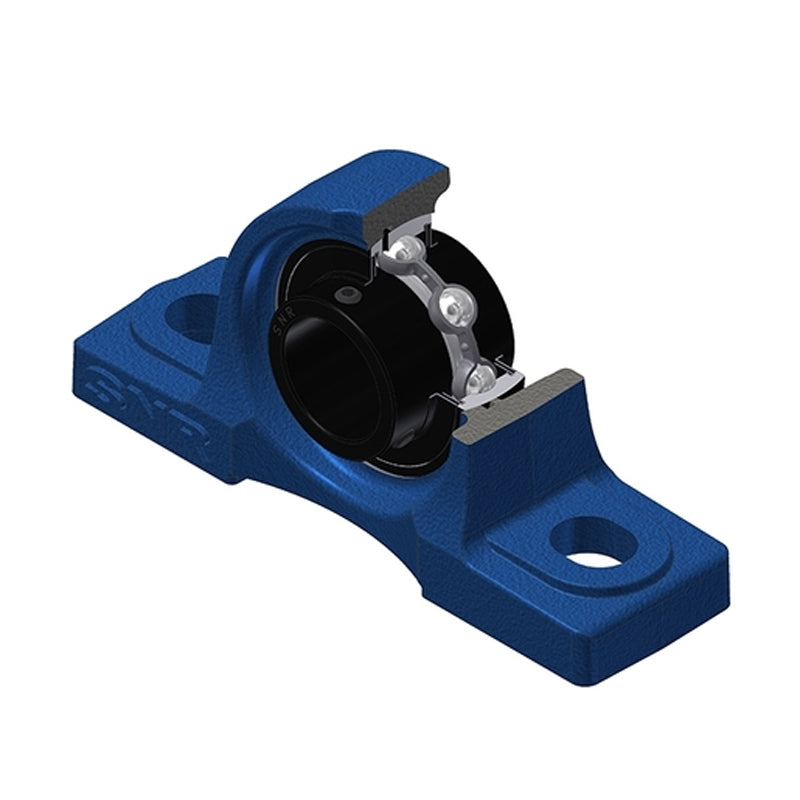

• SNR UCP207-20T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCP207-20T20-SNR

SNR UCP207-20T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP207-20T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
$108.09 ex VAT
$108.09 ex VAT
Sale Sold out

In stock

Price Break
3+ $72.40
4+ $68.33
9+ $67.52
19+ $66.70
49+ $65.89
99+ $65.08
499+ $61.01
999+ $60.20
1999+ $59.38
2999+ $58.57
4999+ $56.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UCP
Bolt Hole Centres:
127mm
Technical
--- Dimensions
Shaft diameter d 1-1/4 inch
A 48mm
A1 31mm
B 42.9mm
H 47.6mm
H1 19mm
H2 94mm
J 127mm
L 167mm
L1 54mm
N 17mm
N1 21mm
S 17.5mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 1.73 kg
Recommended tightening torque for set screw 8 Nm
