SKU: UCP207CC-SNR

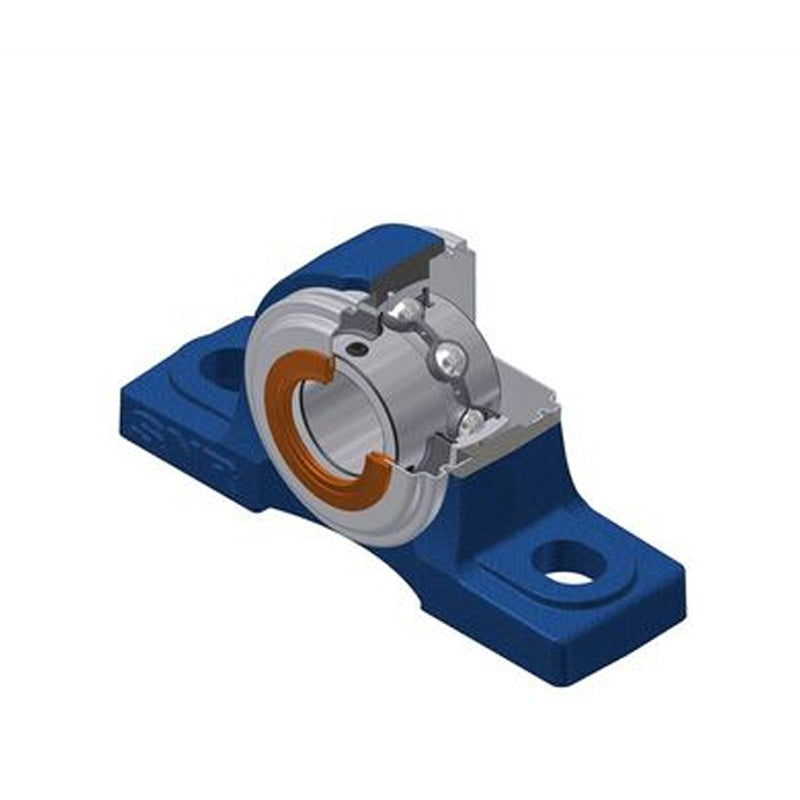

SNR UCP207CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 35mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCP207CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 35mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$103.03
ex VAT
Regular price
Sale price
$103.03
ex VAT
In stock
Price Break
3+
$76.75
4+
$73.65
9+
$72.10
19+
$69.78
49+
$68.23
99+
$64.35
499+
$54.27
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCP
- Bolt Hole Centres:
- 127mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 48mm |
| A1 | 31mm |
| B | 42.9mm |
| H | 47.6mm |
| H1 | 19mm |
| H2 | 94mm |
| J | 127mm |
| L | 167mm |
| L1 | 54mm |
| N | 17mm |
| N1 | 21mm |
| S | 17.5mm |
| Dz | 80mm |
| Z | 41.3mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.788 kg |
| Recommended tightening torque for set screw | 11.5 Nm |
