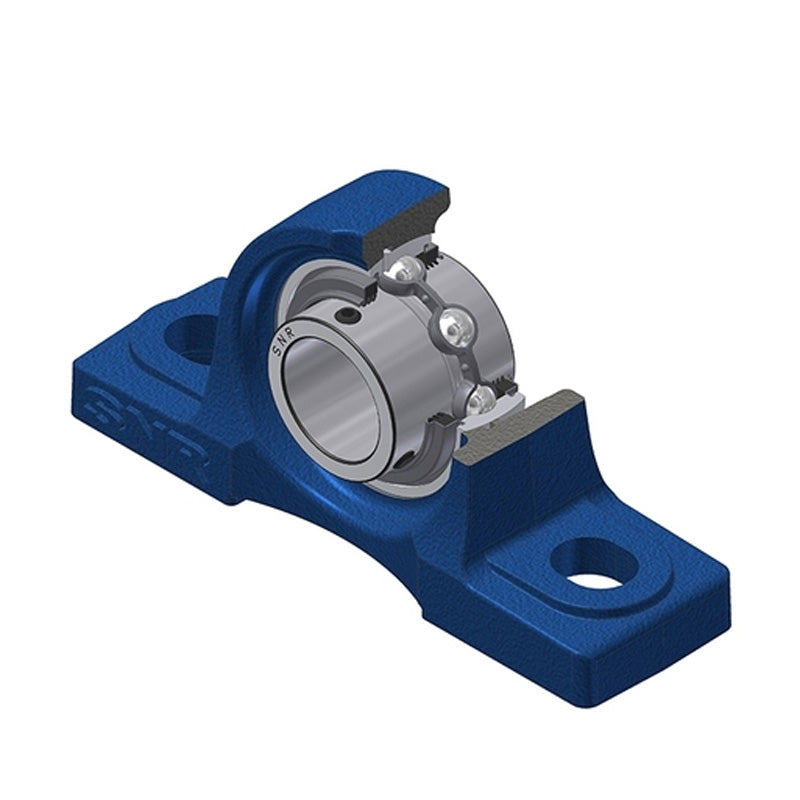

• SNR UCP207L3CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Triple Lip Seal and Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCP207L3CC-SNR

SNR UCP207L3CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Triple Lip Seal and Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCP207L3CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Triple Lip Seal and Steel Plate Cover - Closed Version - Allow 2-3 Days
$73.62 ex VAT
$73.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.85
4+ $52.63
9+ $51.52
19+ $49.86
49+ $48.75
99+ $45.98
499+ $38.78
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCP
Bolt Hole Centres:
127mm
Technical

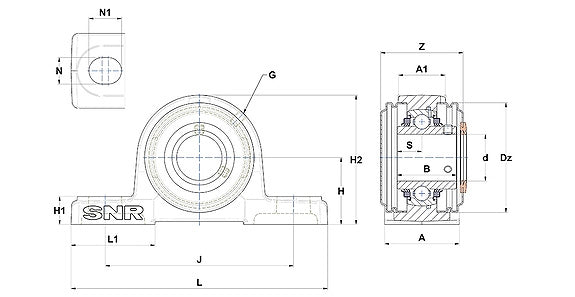

--- Dimensions
Shaft diameter d 35mm
A 48mm
A1 31mm
B 42.9mm
H 47.6mm
H1 19mm
H2 94mm
J 127mm
L 167mm
L1 54mm
N 17mm
N1 21mm
S 17.5mm
Dz 80mm
Z 60mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.788 kg
Recommended tightening torque for set screw 11.5 Nm
