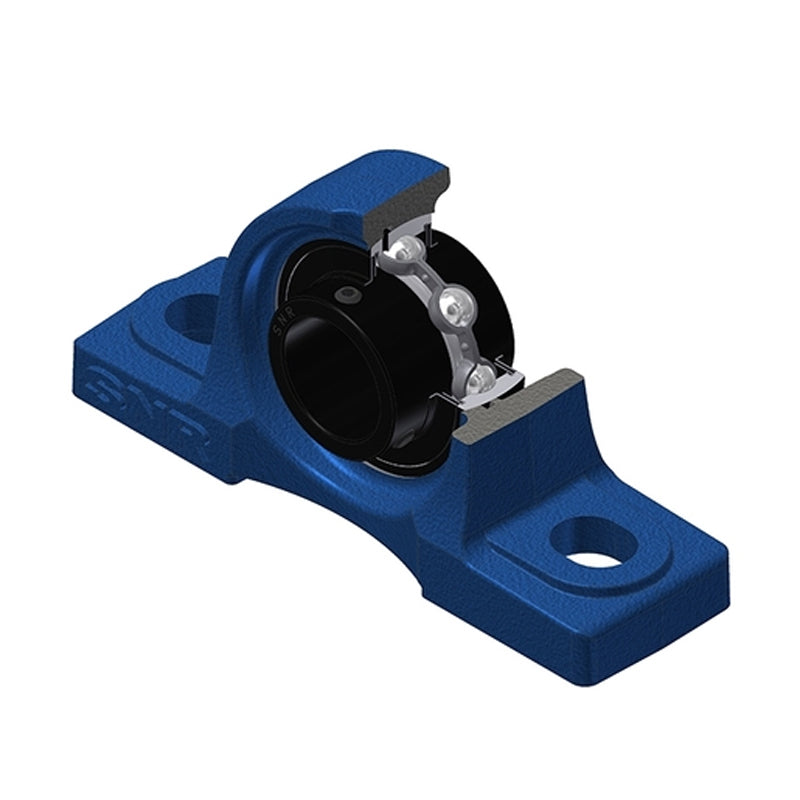

• SNR UCP208-24T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCP208-24T20-SNR

SNR UCP208-24T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP208-24T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
$119.53 ex VAT
$119.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $80.07
4+ $75.57
9+ $74.67
19+ $73.77
49+ $72.87
99+ $71.97
499+ $67.47
999+ $66.57
1999+ $65.67
2999+ $64.77
4999+ $62.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCP
Bolt Hole Centres:
137mm
Technical
--- Dimensions
Shaft diameter d 1-1/2 inch
A 54mm
A1 34mm
B 49.2mm
H 49.2mm
H1 19mm
H2 100mm
J 137mm
L 184mm
L1 52mm
N 17mm
N1 23mm
S 19mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 2.18 kg
Recommended tightening torque for set screw 8 Nm
