SKU: UCP208CC-SNR

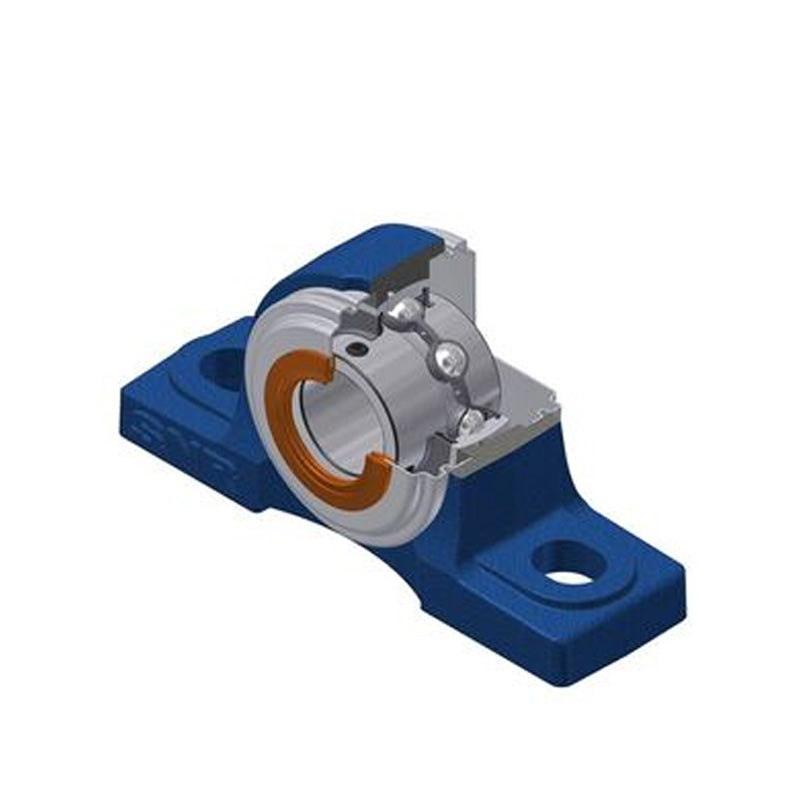

SNR UCP208CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCP208CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$88.36
ex VAT
Regular price
Sale price
$88.36
ex VAT
In stock
Price Break
3+
$65.83
4+
$63.17
9+
$61.84
19+
$59.84
49+
$58.51
99+
$55.19
499+
$46.54
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCP
- Bolt Hole Centres:
- 137mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 54mm |
| A1 | 34mm |
| B | 49.2mm |
| H | 49.2mm |
| H1 | 19mm |
| H2 | 100mm |
| J | 137mm |
| L | 184mm |
| L1 | 52mm |
| N | 17mm |
| N1 | 23mm |
| S | 19mm |
| Dz | 88mm |
| Z | 46.1mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.19 kg |
| Recommended tightening torque for set screw | 11.5 Nm |
