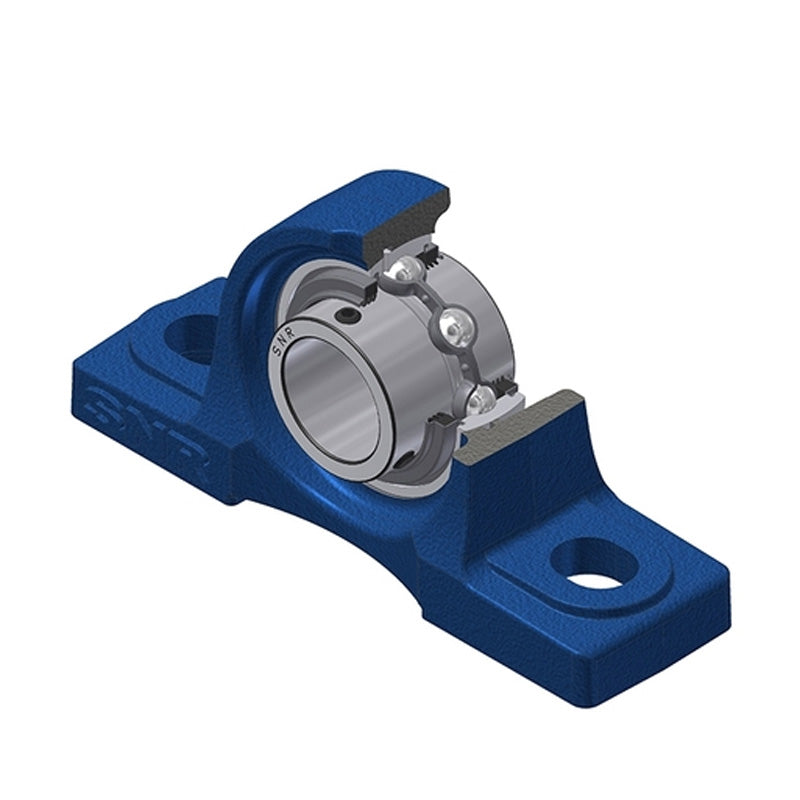

• SNR UCP208L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Triple Lip Seal
  • SNR
1 2

SKU: UCP208L3-SNR

SNR UCP208L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Triple Lip Seal

SNR UCP208L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Triple Lip Seal
$84.53 ex VAT
$84.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $56.62
4+ $53.44
9+ $52.80
19+ $52.17
49+ $51.53
99+ $50.89
499+ $47.71
999+ $47.08
1999+ $46.44
2999+ $45.80
4999+ $44.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UCP
Bolt Hole Centres:
137mm
Technical

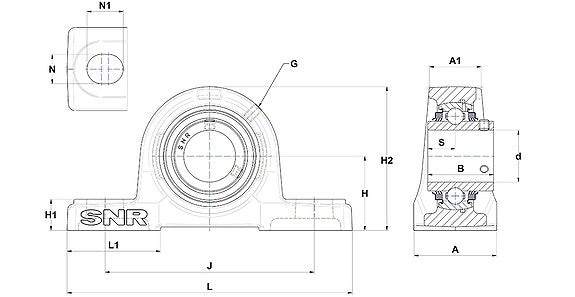

--- Dimensions
Shaft diameter d 40mm
A 54mm
A1 34mm
B 49.2mm
H 49.2mm
H1 19mm
H2 100mm
J 137mm
L 184mm
L1 52mm
N 17mm
N1 23mm
S 19mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.14 kg
Recommended tightening torque for set screw 11.5 Nm
