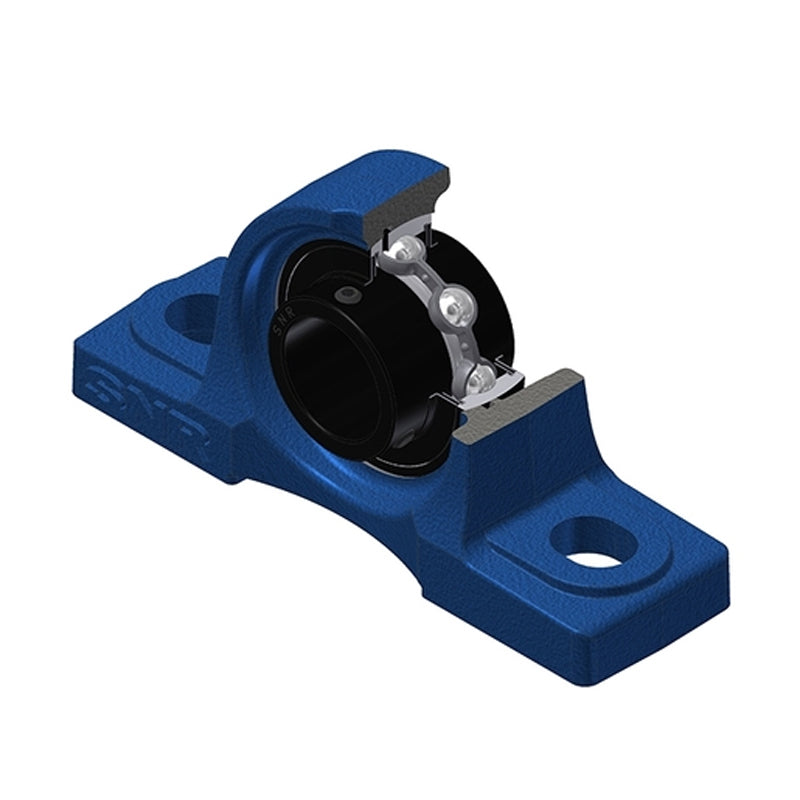

• SNR UCP208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCP208T20-SNR

SNR UCP208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$132.56 ex VAT
$132.56 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.75
4+ $94.76
9+ $92.77
19+ $89.78
49+ $87.78
99+ $82.79
499+ $69.83
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UCP
Bolt Hole Centres:
137mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 54mm
A1 34mm
B 49.2mm
H 49.2mm
H1 19mm
H2 100mm
J 137mm
L 184mm
L1 52mm
N 17mm
N1 23mm
S 19mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 2.14 kg
Recommended tightening torque for set screw 11.5 Nm
