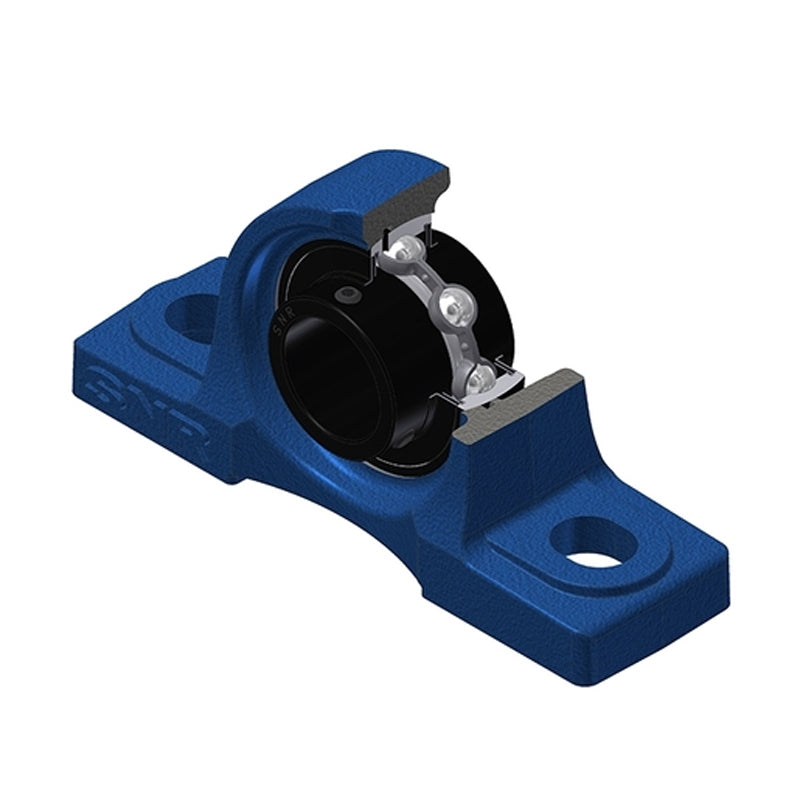

• SNR UCP209-27T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCP209-27T20-SNR

SNR UCP209-27T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP209-27T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
$147.28 ex VAT
$147.28 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.72
4+ $105.29
9+ $103.07
19+ $99.75
49+ $97.53
99+ $91.99
499+ $77.58
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Style:
UCP
Bolt Hole Centres:
146mm
Technical
--- Dimensions
Shaft diameter d 1-11/16 inch
A 54mm
A1 37mm
B 49.2mm
H 54mm
H1 20mm
H2 108mm
J 146mm
L 190mm
L1 60mm
N 17mm
N1 23mm
S 19mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 2.44 kg
Recommended tightening torque for set screw 8 Nm
