SKU: UCP209CC-SNR

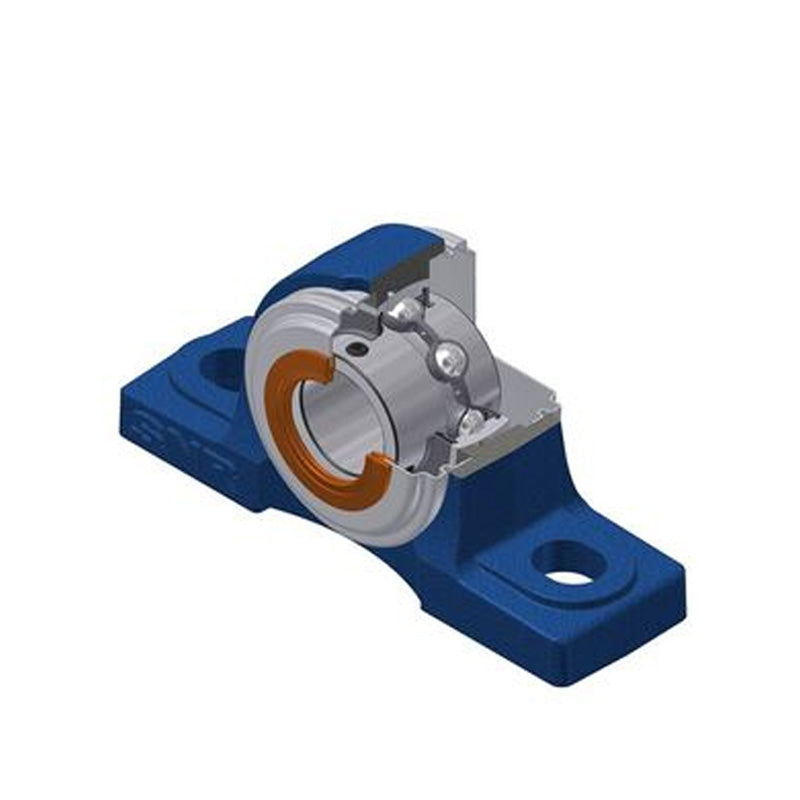

SNR UCP209CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCP209CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$103.11
ex VAT
Regular price
Sale price
$103.11
ex VAT
In stock
Price Break
3+
$76.81
4+
$73.71
9+
$72.16
19+
$69.83
49+
$68.28
99+
$64.40
499+
$54.31
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 54mm |
| A1 | 37mm |
| B | 49.2mm |
| H | 54mm |
| H1 | 20mm |
| H2 | 108mm |
| J | 146mm |
| L | 190mm |
| L1 | 60mm |
| N | 17mm |
| N1 | 23mm |
| S | 19mm |
| Dz | 95mm |
| Z | 47.1mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.449 kg |
| Recommended tightening torque for set screw | 11.5 Nm |
