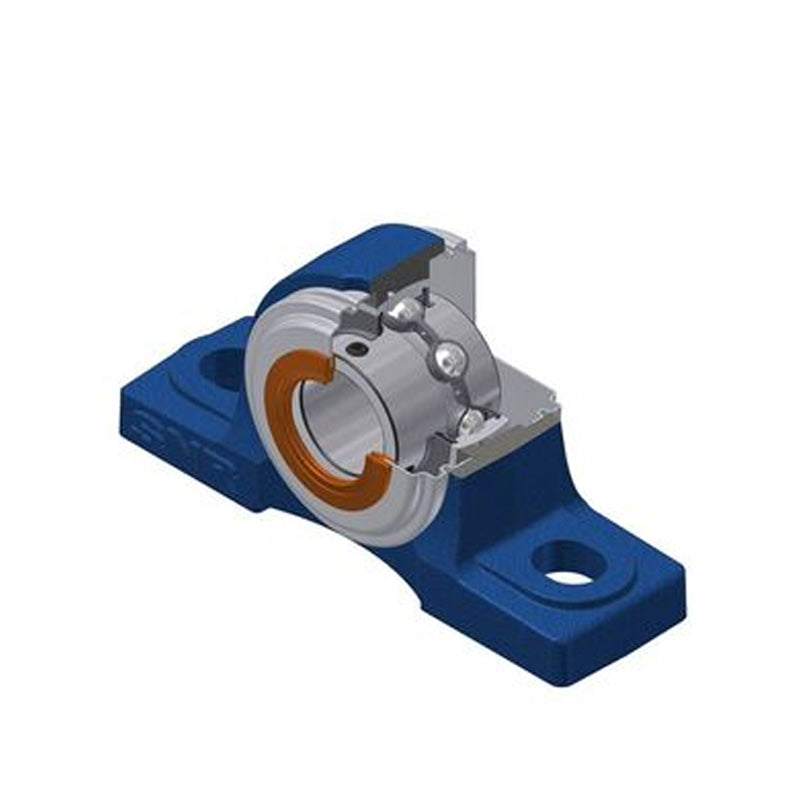

• SNR UCP209CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCP209CO-SNR

SNR UCP209CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCP209CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$82.18 ex VAT
$82.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.05
4+ $51.96
9+ $51.34
19+ $50.72
49+ $50.10
99+ $49.48
499+ $46.39
999+ $45.77
1999+ $45.15
2999+ $44.53
4999+ $43.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCP
Bolt Hole Centres:
146mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 54mm
A1 37mm
B 49.2mm
H 54mm
H1 20mm
H2 108mm
J 146mm
L 190mm
L1 60mm
N 17mm
N1 23mm
S 19mm
Dz 95mm
Z 47.1mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.359 kg
Recommended tightening torque for set screw 11.5 Nm
