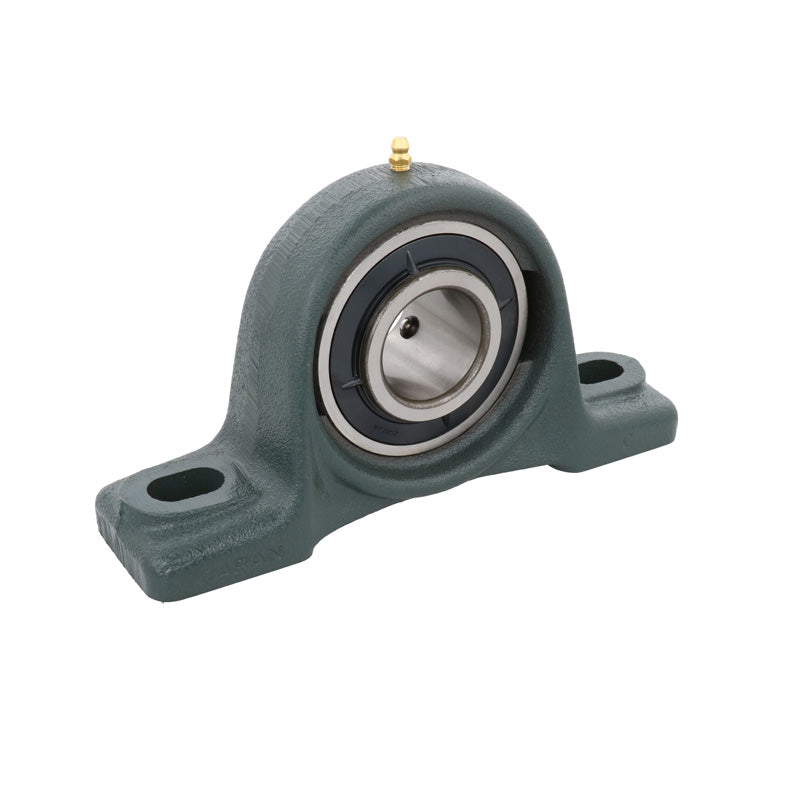

• NTN UCP210-115D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert - Allow 2-3 Days
1 1

SKU: UCP210-115D1-NTN

NTN UCP210-115D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert - Allow 2-3 Days

NTN UCP210-115D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert - Allow 2-3 Days
$88.34 ex VAT
$88.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.82
4+ $63.16
9+ $61.83
19+ $59.83
49+ $58.50
99+ $55.18
499+ $46.54
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
UCP
Bolt Hole Centres:
6-1/4 inch
Technical
--- Dimensions
Shaft diameter 1-15/16 inch
H 2-1/4 inch
L 8-1/8 inch
J 6-1/4 inch
A 2-3/8 inch
N 25/32 inch
N<sub>1</sub> 29/32 inch
H<sub>1</sub> 13/16 inch
H<sub>2</sub> 4-1/2 inch
L<sub>1</sub> 2-9/16 inch
B 2.0315 inch
S 0.748 inch
Fixing bolt 5/8 inch
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 6 lbs
