• SNR UCP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
  • SNR
1 2

SKU: UCP210-SNR

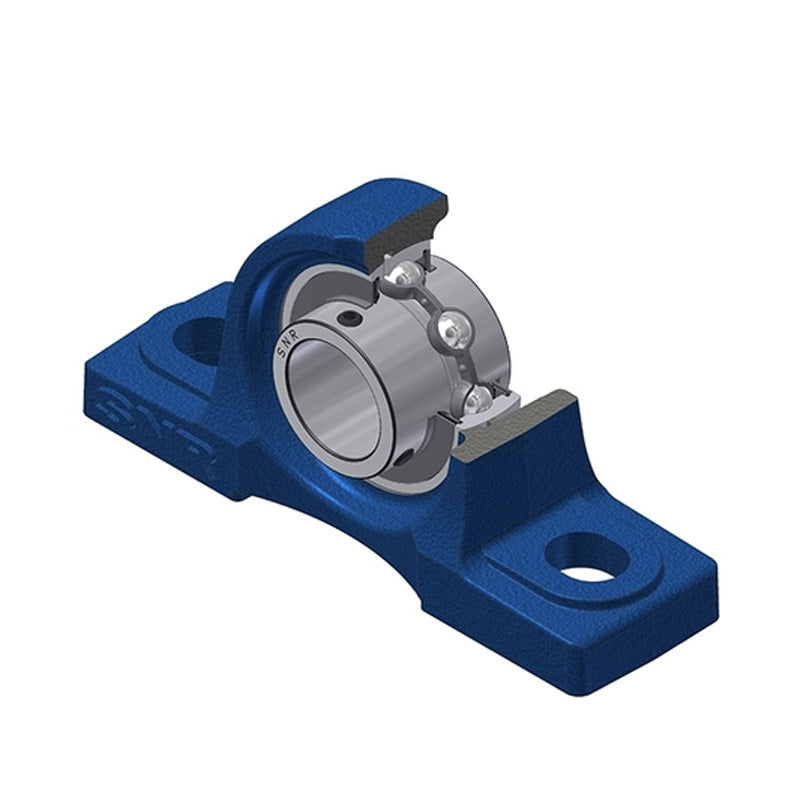

SNR UCP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert

SNR UCP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
$56.35 ex VAT
$56.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $37.75
4+ $35.63
9+ $35.20
19+ $34.78
49+ $34.35
99+ $33.93
499+ $31.81
999+ $31.38
1999+ $30.96
2999+ $30.54
4999+ $29.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCP
Bolt Hole Centres:
159mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 60mm
A1 39mm
B 51.6mm
H 57.2mm
H1 22mm
H2 114mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 19mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 3 kg
Recommended tightening torque for set screw 22 Nm
