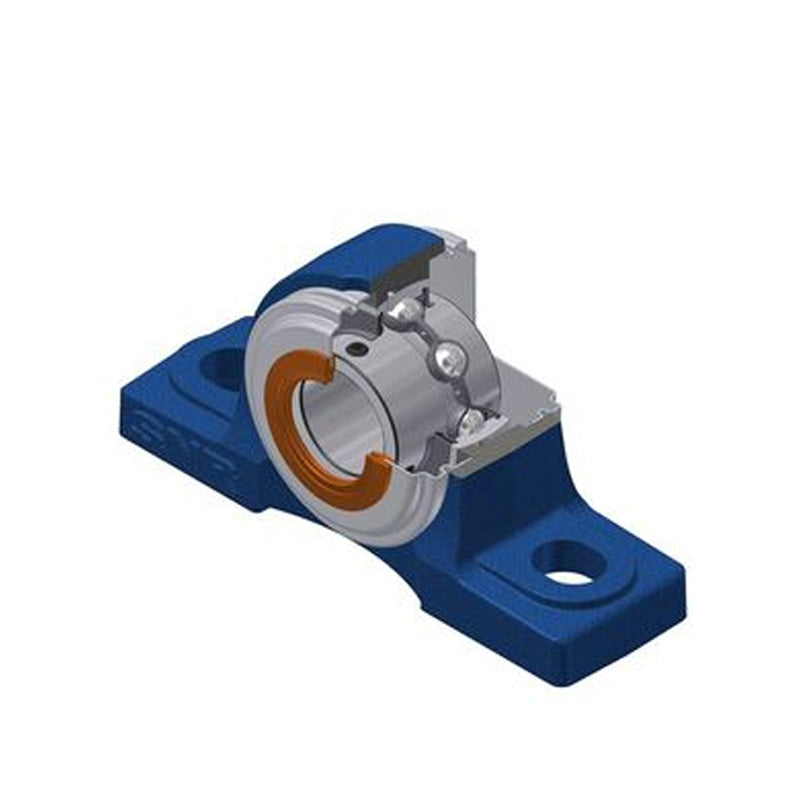

• SNR UCP210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 50mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCP210CC-SNR

SNR UCP210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 50mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCP210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 50mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
$84.53 ex VAT
$84.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $56.62
4+ $53.44
9+ $52.80
19+ $52.17
49+ $51.53
99+ $50.89
499+ $47.71
999+ $47.08
1999+ $46.44
2999+ $45.80
4999+ $44.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCP
Bolt Hole Centres:
159mm
Technical

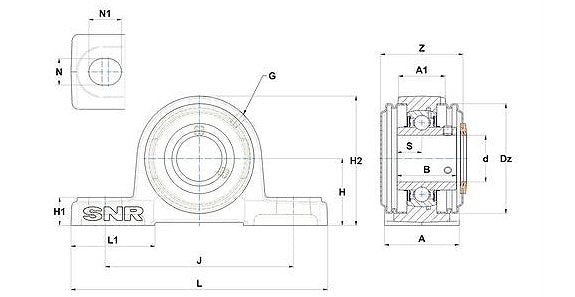

--- Dimensions
Shaft diameter d 50mm
A 60mm
A1 39mm
B 51.6mm
H 57.2mm
H1 22mm
H2 114mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 19mm
Dz 100mm
Z 50.2mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 3.03 kg
Recommended tightening torque for set screw 22 Nm
