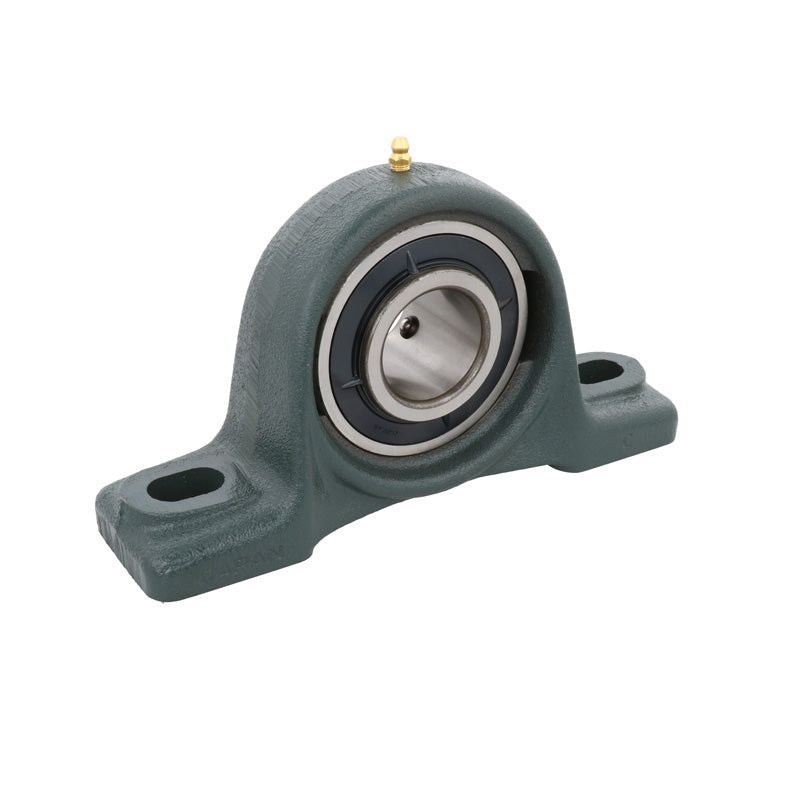

• NTN UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
  • NTN
1 2

SKU: UCP210D1-NTN

NTN UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert

NTN UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
$58.04 ex VAT
$58.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $38.88
4+ $36.69
9+ $36.25
19+ $35.82
49+ $35.38
99+ $34.94
499+ $32.76
999+ $32.32
1999+ $31.89
2999+ $31.45
4999+ $30.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Style:
UCP
Bolt Hole Centres:
159mm
Technical
--- Dimensions
Shaft diameter 50mm
H 57.2mm
L 206mm
J 159mm
A 60mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 21mm
H<sub>2</sub> 114mm
L<sub>1</sub> 65mm
B 51.6mm
S 19mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 2.7 kg
