SKU: UCP210L3-SNR

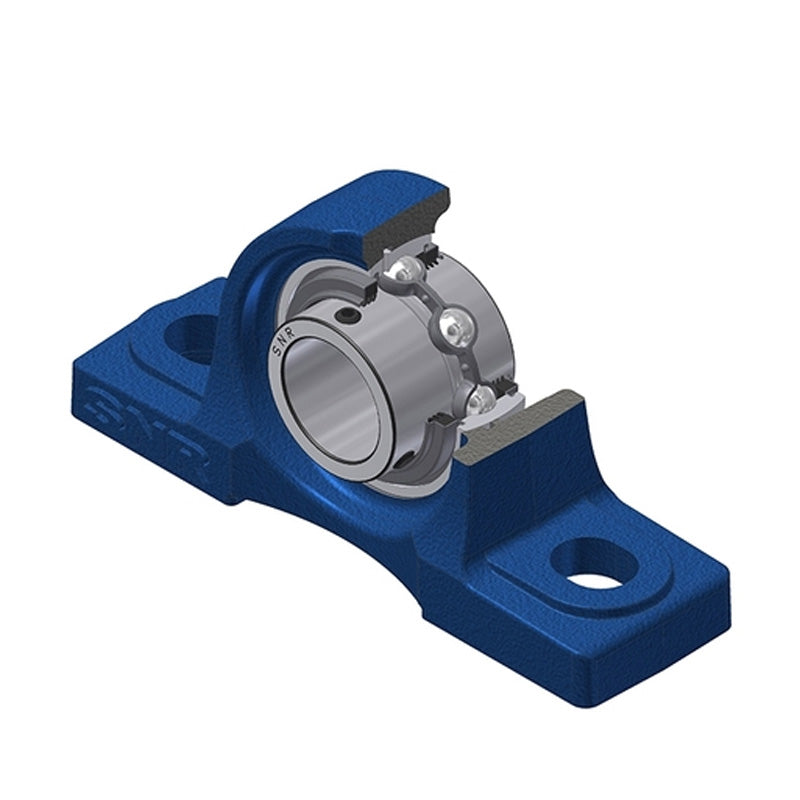

SNR UCP210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal
SNR UCP210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal
Regular price
$116.23
ex VAT
Regular price
Sale price
$116.23
ex VAT
In stock
Price Break
3+
$77.85
4+
$73.48
9+
$72.60
19+
$71.73
49+
$70.85
99+
$69.98
499+
$65.61
999+
$64.73
1999+
$63.86
2999+
$62.98
4999+
$61.23
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 60mm |
| A1 | 39mm |
| B | 51.6mm |
| H | 57.2mm |
| H1 | 22mm |
| H2 | 114mm |
| J | 159mm |
| L | 206mm |
| L1 | 65mm |
| N | 20mm |
| N1 | 25mm |
| S | 19mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 3 kg |
| Recommended tightening torque for set screw | 22 Nm |
