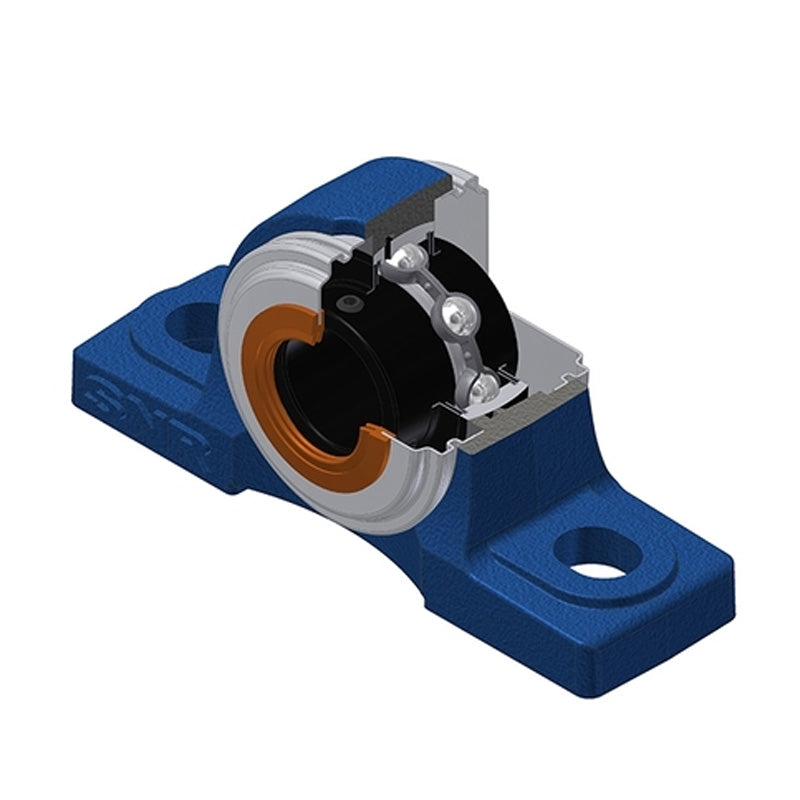

• SNR UCP210T20CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Steel Plate Cover - Open Version - Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCP210T20CO-SNR

SNR UCP210T20CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Steel Plate Cover - Open Version - Wide Temperature Version - Allow 2-3 Days

SNR UCP210T20CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Steel Plate Cover - Open Version - Wide Temperature Version - Allow 2-3 Days
$117.74 ex VAT
$117.74 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.71
4+ $84.17
9+ $82.40
19+ $79.74
49+ $77.97
99+ $73.54
499+ $62.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCP
Bolt Hole Centres:
159mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 60mm
A1 39mm
B 51.6mm
H 57.2mm
H1 22mm
H2 114mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 19mm
Dz 100mm
Z 50.2mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 2.907 kg
Recommended tightening torque for set screw 22 Nm
