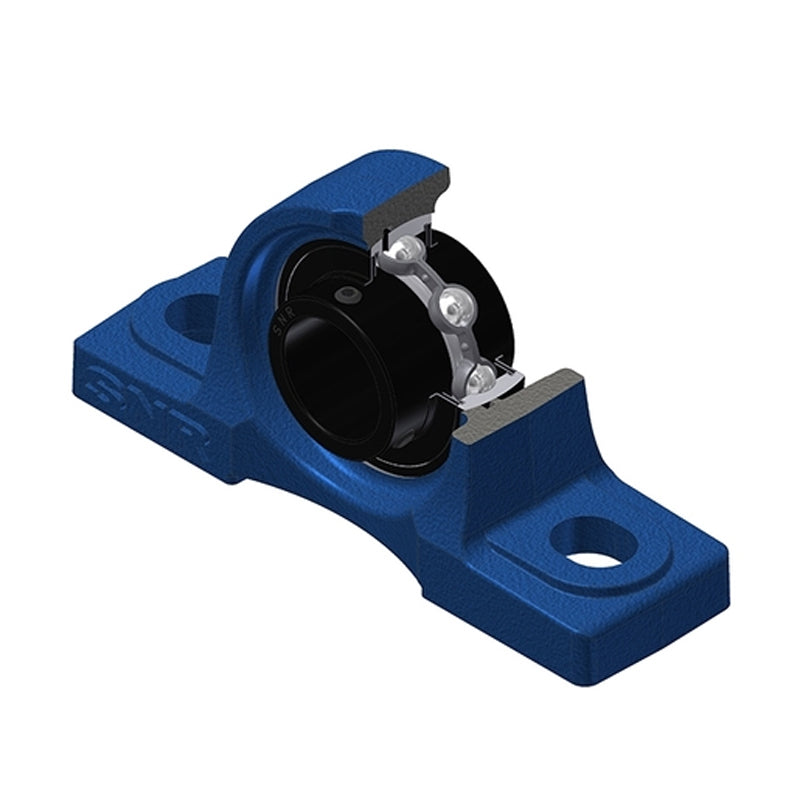

• SNR UCP211-32T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCP211-32T20-SNR

SNR UCP211-32T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP211-32T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
$206.11 ex VAT
$206.11 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.55
4+ $147.35
9+ $144.24
19+ $139.59
49+ $136.49
99+ $128.73
499+ $108.57
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
50.8mm = 2 Inch
Style:
UCP
Bolt Hole Centres:
171mm
Technical
--- Dimensions
Shaft diameter d 2 inch
A 60mm
A1 40mm
B 55.6mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 22.2mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 3.87 kg
Recommended tightening torque for set screw 16.8 Nm
