• SNR UCP211-35N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 2-3/16 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCP211-35N-SNR

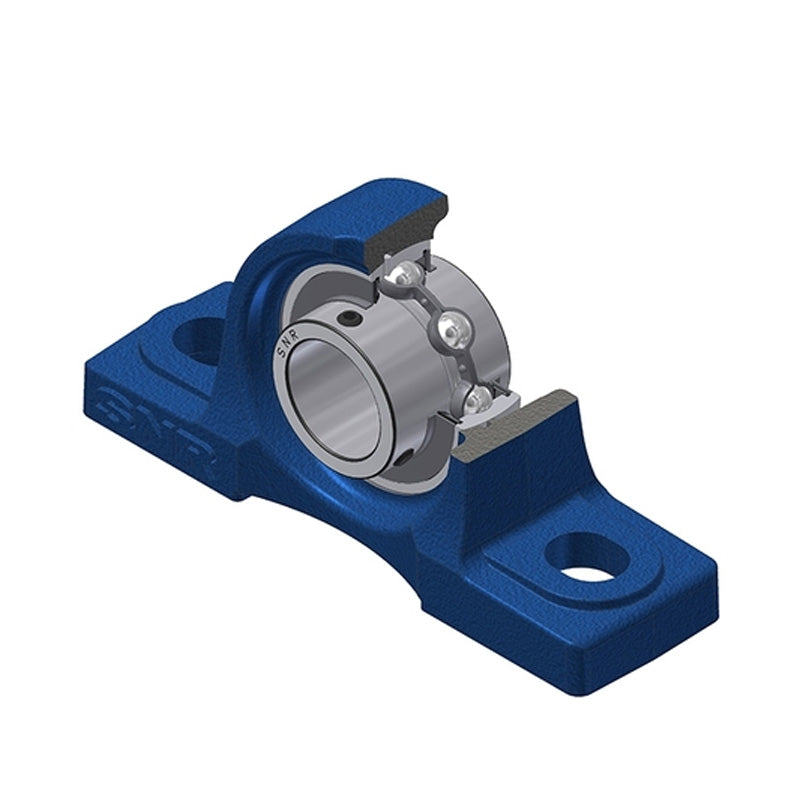

SNR UCP211-35N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 2-3/16 inch Bore Insert - Allow 2-3 Days

SNR UCP211-35N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 2-3/16 inch Bore Insert - Allow 2-3 Days
$75.14 ex VAT
$75.14 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.33
4+ $47.50
9+ $46.94
19+ $46.37
49+ $45.80
99+ $45.24
499+ $42.41
999+ $41.85
1999+ $41.28
2999+ $40.72
4999+ $39.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Style:
UCP
Bolt Hole Centres:
171mm
Technical

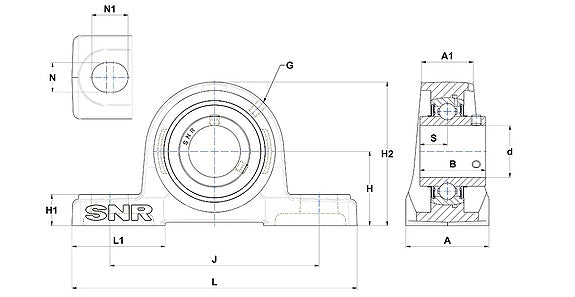

--- Dimensions
Shaft diameter d 2-3/16 inch
A 60mm
A1 40mm
B 55.6mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 22.2mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 3.5 kg
Recommended tightening torque for set screw 16.8 Nm
