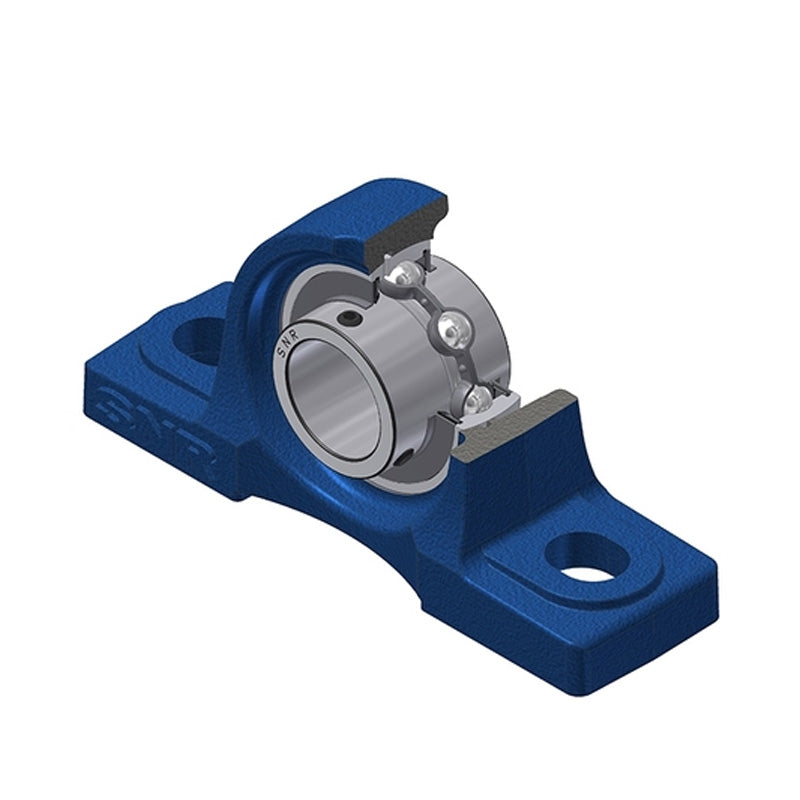

• SNR UCP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert
  • SNR
1 2

SKU: UCP211-SNR

SNR UCP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert

SNR UCP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert
$74.29 ex VAT
$74.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $49.76
4+ $46.96
9+ $46.40
19+ $45.84
49+ $45.28
99+ $44.73
499+ $41.93
999+ $41.37
1999+ $40.81
2999+ $40.25
4999+ $39.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
UCP
Bolt Hole Centres:
171mm
Technical
--- Dimensions
Shaft diameter d 55mm
A 60mm
A1 40mm
B 55.6mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 22.2mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 3.72 kg
Recommended tightening torque for set screw 22 Nm
