SKU: UCP211CC-SNR

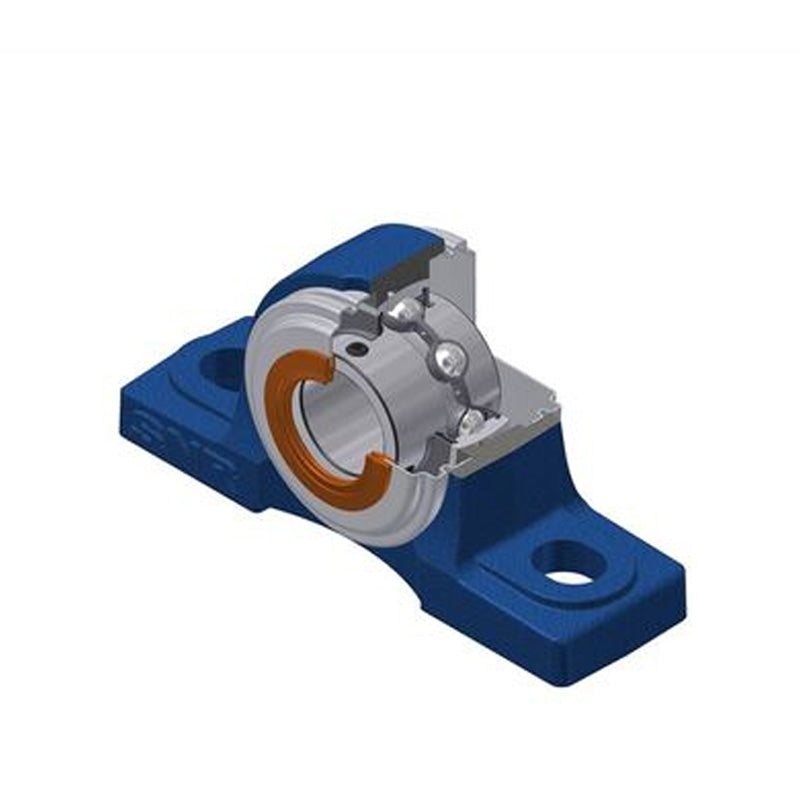

SNR UCP211CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 55mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCP211CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 55mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$132.50
ex VAT
Regular price
Sale price
$132.50
ex VAT
In stock
Price Break
3+
$98.71
4+
$94.72
9+
$92.73
19+
$89.74
49+
$87.74
99+
$82.76
499+
$69.80
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCP
- Bolt Hole Centres:
- 171mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 60mm |
| A1 | 40mm |
| B | 55.6mm |
| H | 63.5mm |
| H1 | 22mm |
| H2 | 126mm |
| J | 171mm |
| L | 219mm |
| L1 | 70mm |
| N | 20mm |
| N1 | 25mm |
| S | 22.2mm |
| Dz | 110mm |
| Z | 51.9mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 3.782 kg |
| Recommended tightening torque for set screw | 22 Nm |
