• NTN UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
  • NTN
1 2

SKU: UCP211D1-NTN

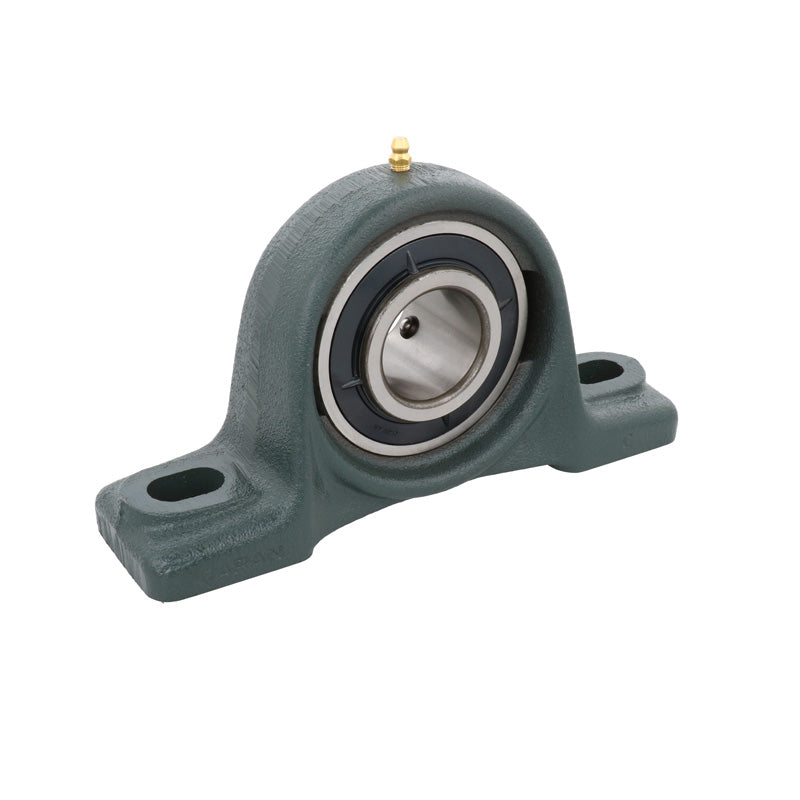

NTN UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days

NTN UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
$76.51 ex VAT
$76.51 ex VAT
Sale Sold out

In stock

Price Break
3+ $51.25
4+ $48.37
9+ $47.79
19+ $47.22
49+ $46.64
99+ $46.06
499+ $43.19
999+ $42.61
1999+ $42.03
2999+ $41.46
4999+ $40.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Style:
UCP
Bolt Hole Centres:
171mm
Technical
--- Dimensions
Shaft diameter 55mm
H 63.5mm
L 219mm
J 171mm
A 60mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 23mm
H<sub>2</sub> 126mm
L<sub>1</sub> 65mm
B 55.6mm
S 22.2mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 48 kN
Static load C<sub>0r</sub> 29.2 kN
Fatigue load limit C<sub>u</sub> 2.29 kN
--- Unit information
Mass 3.4 kg
