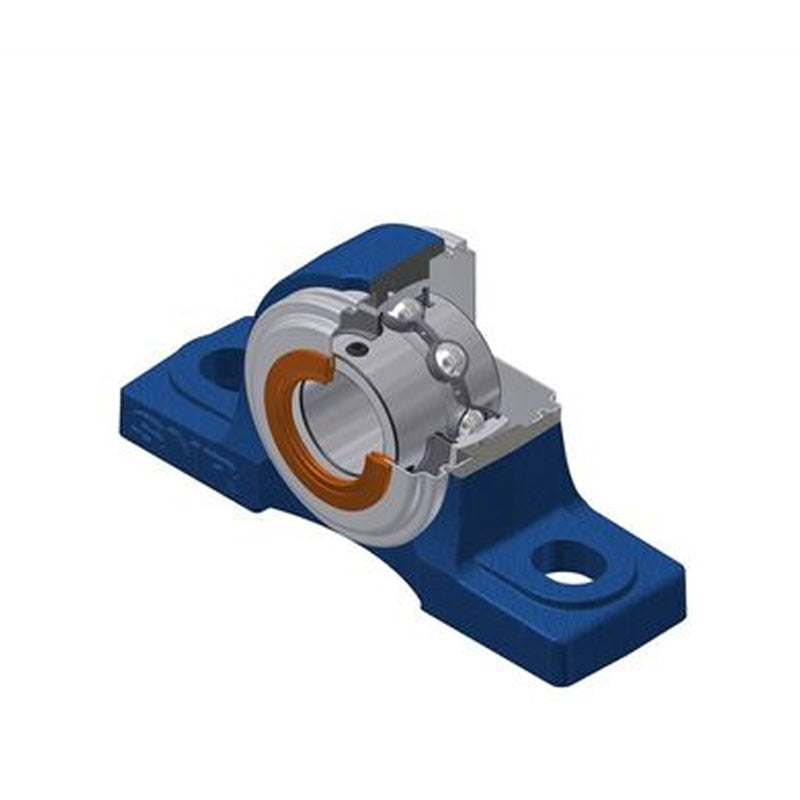

• SNR UCP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Closed Version
  • SNR
1 2

SKU: UCP212CC-SNR

SNR UCP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Closed Version

SNR UCP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Closed Version
$108.87 ex VAT
$108.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $72.92
4+ $68.83
9+ $68.01
19+ $67.19
49+ $66.37
99+ $65.55
499+ $61.45
999+ $60.63
1999+ $59.81
2999+ $58.99
4999+ $57.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UCP
Bolt Hole Centres:
184mm
Technical
--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 44mm
B 65.1mm
H 69.8mm
H1 25mm
H2 138mm
J 184mm
L 241mm
L1 70mm
N 20mm
N1 25mm
S 25.4mm
Dz 120mm
Z 59.6mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 5.26 kg
Recommended tightening torque for set screw 22 Nm
