SKU: UCP212NL3-SNR

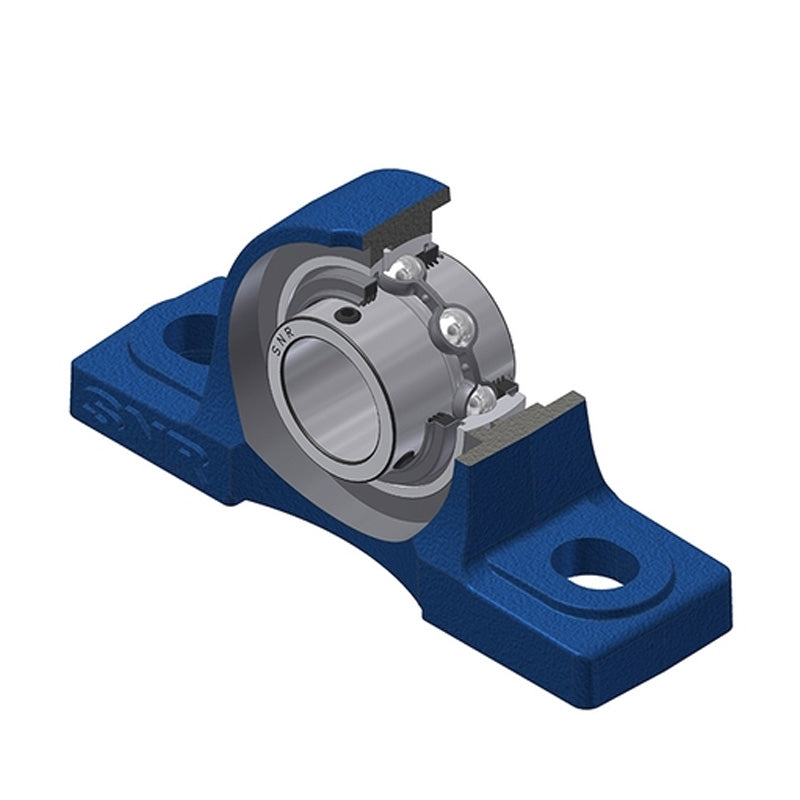

SNR UCP212NL3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCP212NL3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
$176.65
ex VAT
Regular price
Sale price
$176.65
ex VAT
In stock
Price Break
3+
$131.60
4+
$126.28
9+
$123.62
19+
$119.64
49+
$116.98
99+
$110.33
499+
$93.05
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 70mm |
| A1 | 44mm |
| B | 65.1mm |
| H | 69.8mm |
| H1 | 25mm |
| H2 | 138mm |
| J | 184mm |
| L | 241mm |
| L1 | 70mm |
| N | 20mm |
| N1 | 25mm |
| S | 25.4mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.03 kg |
| Recommended tightening torque for set screw | 22 Nm |
