• SNR UCP214-44 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/4 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCP214-44-SNR

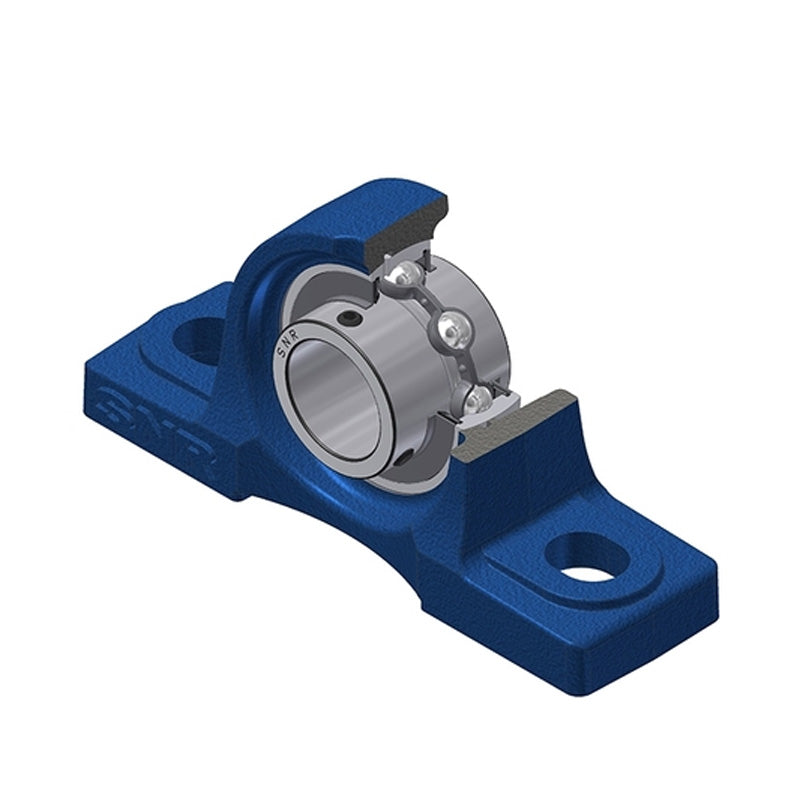

SNR UCP214-44 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/4 inch Bore Insert - Allow 2-3 Days

SNR UCP214-44 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/4 inch Bore Insert - Allow 2-3 Days
$117.40 ex VAT
$117.40 ex VAT
Sale Sold out

In stock

Price Break
3+ $78.64
4+ $74.22
9+ $73.34
19+ $72.46
49+ $71.57
99+ $70.69
499+ $66.27
999+ $65.39
1999+ $64.50
2999+ $63.62
4999+ $61.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
69.85mm = 2.75 (2-3/4) inch
Style:
UCP
Bolt Hole Centres:
210mm
Technical
--- Dimensions
Shaft diameter d 2-3/4 inch
A 72mm
A1 48mm
B 74.6mm
H 79.4mm
H1 27mm
H2 156mm
J 210mm
L 266mm
L1 83mm
N 25mm
N1 31mm
S 30.2mm
Grease fitting G M10x1
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 6.66 kg
Recommended tightening torque for set screw 27.1 Nm
