• SNR UCP214T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCP214T20-SNR

SNR UCP214T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP214T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$412.38 ex VAT
$412.38 ex VAT
Sale Sold out

In stock

Price Break
3+ $307.22
4+ $294.80
9+ $288.60
19+ $279.29
49+ $273.08
99+ $257.57
499+ $217.22
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

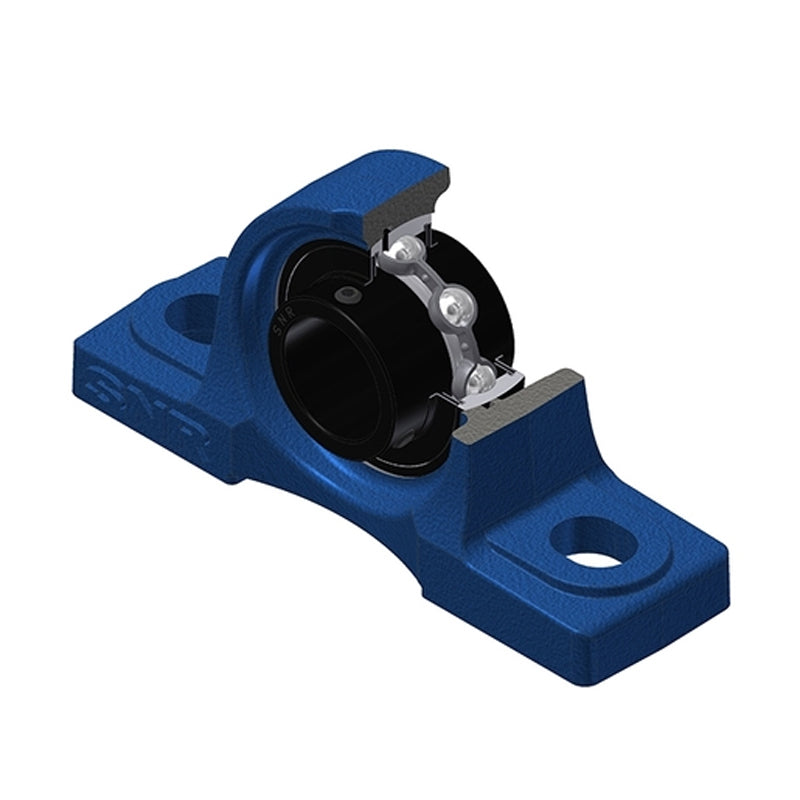

UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
UCP
Bolt Hole Centres:
210mm
Technical
--- Dimensions
Shaft diameter d 70mm
A 72mm
A1 48mm
B 74.6mm
H 79.4mm
H1 27mm
H2 156mm
J 210mm
L 266mm
L1 83mm
N 25mm
N1 31mm
S 30.2mm
Grease fitting G M10x1
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 6.65 kg
Recommended tightening torque for set screw 33 Nm
