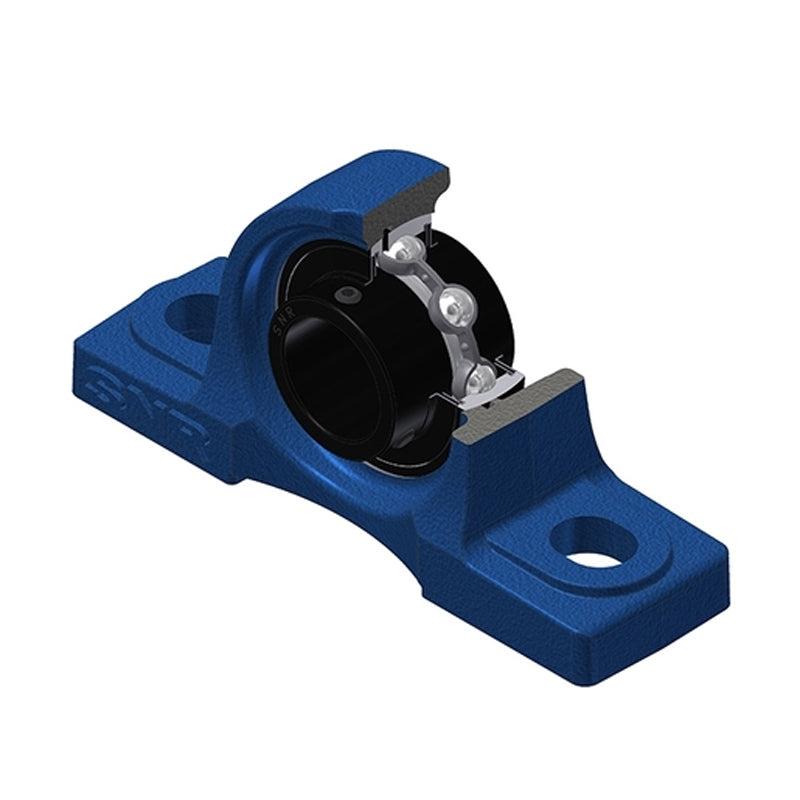

• SNR UCP215T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCP215T20-SNR

SNR UCP215T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP215T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$515.17 ex VAT
$515.17 ex VAT
Sale Sold out

In stock

Price Break
3+ $383.79
4+ $368.29
9+ $360.53
19+ $348.90
49+ $341.15
99+ $321.77
499+ $271.37
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
75mm
Style:
UCP
Bolt Hole Centres:
217mm
Technical
--- Dimensions
Shaft diameter d 75mm
A 74mm
A1 48mm
B 77.8mm
H 82.6mm
H1 28mm
H2 163mm
J 217mm
L 275mm
L1 85mm
N 25mm
N1 31mm
S 33.3mm
Grease fitting G M10x1
--- Load rating
Dynamic load C 66 kN
Static load C0 49.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 7.31 kg
Recommended tightening torque for set screw 33 Nm
