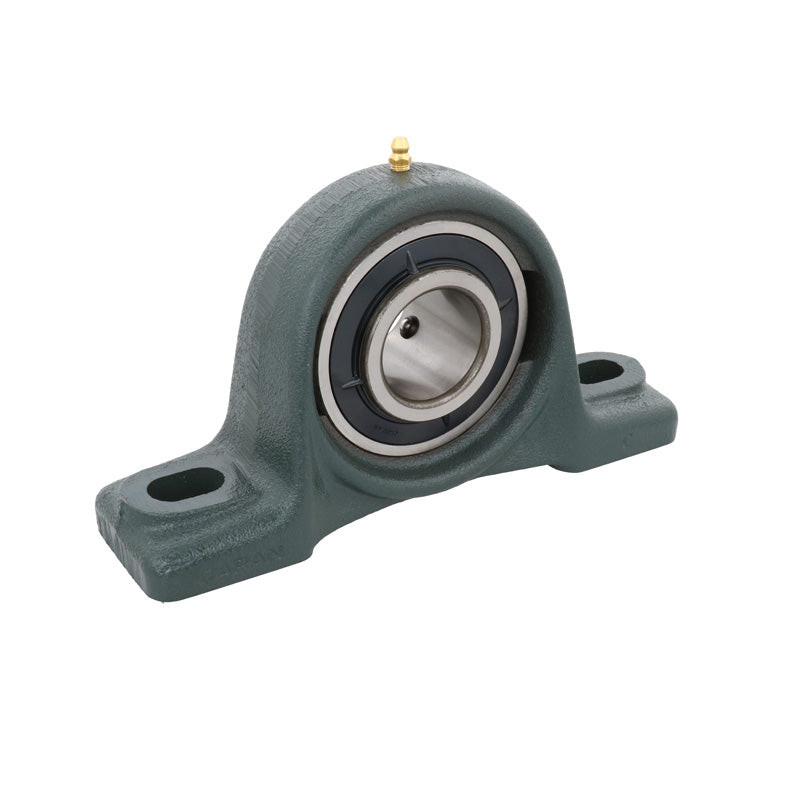

• NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
  • NTN
1 2

SKU: UCP218D1-NTN

NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days

NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
$244.41 ex VAT
$244.41 ex VAT
Sale Sold out

In stock

Price Break
3+ $163.72
4+ $154.52
9+ $152.68
19+ $150.84
49+ $149.00
99+ $147.16
499+ $137.96
999+ $136.12
1999+ $134.28
2999+ $132.44
4999+ $128.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
90mm
Style:
UCP
Bolt Hole Centres:
262mm
Technical
--- Dimensions
Shaft diameter 90mm
H 101.6mm
L 327mm
J 262mm
A 88mm
N 27mm
N<sub>1</sub> 30mm
H<sub>1</sub> 33mm
H<sub>2</sub> 200mm
L<sub>1</sub> 90mm
B 96mm
S 39.7mm
Fixing bolt M22
--- Load rating
Dynamic load C<sub>r</sub> 106 kN
Static load C<sub>0r</sub> 71.5 kN
Fatigue load limit C<sub>u</sub> 5 kN
--- Unit information
Mass 13 kg
