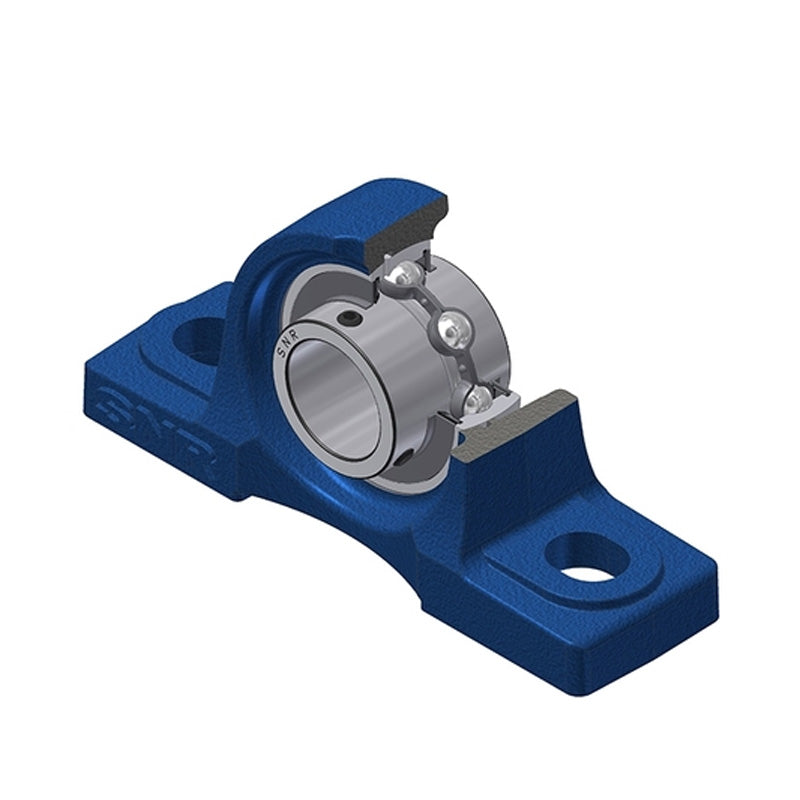

• SNR UCP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCP311-SNR

SNR UCP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days

SNR UCP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
$132.34 ex VAT
$132.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $88.65
4+ $83.67
9+ $82.67
19+ $81.67
49+ $80.68
99+ $79.68
499+ $74.70
999+ $73.71
1999+ $72.71
2999+ $71.71
4999+ $69.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
UCP
Bolt Hole Centres:
236mm
Technical
--- Dimensions
Shaft diameter d 55mm
A 80mm
A1 51mm
B 66mm
H 80mm
H1 30mm
H2 154mm
J 236mm
L 310mm
L1 85mm
N 20mm
N1 38mm
S 25mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 71.5 kN
Static load C0 44.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 7.5 kg
Recommended tightening torque for set screw 33 Nm
