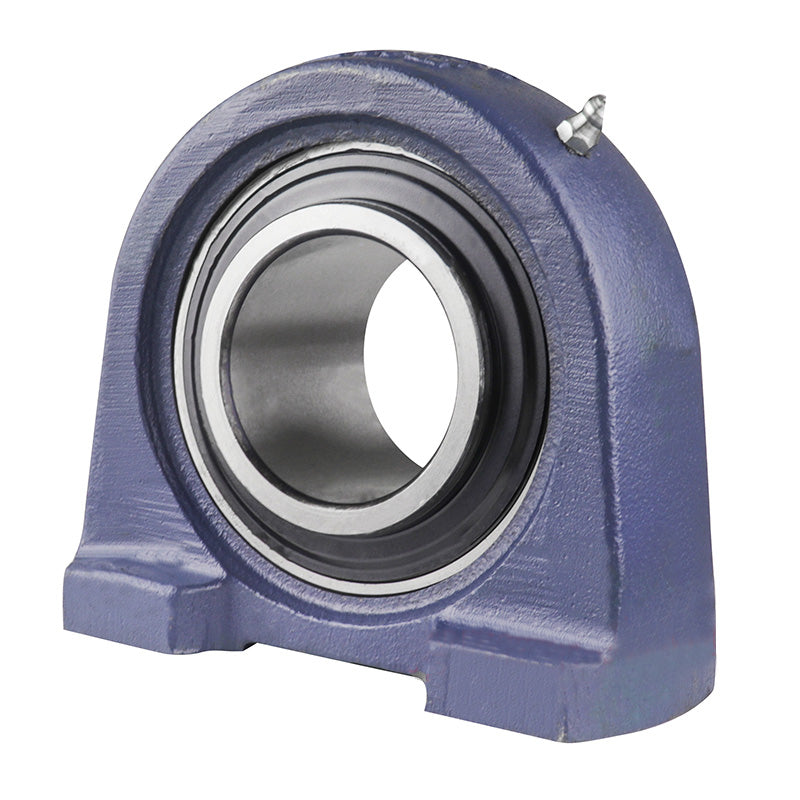

• UCPA204-12 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 3/4 inch Bore Insert
1 1

SKU: UCPA.204-12

UCPA204-12 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 3/4 inch Bore Insert

UCPA204-12 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 3/4 inch Bore Insert
$18.00 ex VAT
$18.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $12.06
4+ $11.38
9+ $11.24
19+ $11.11
49+ $10.97
99+ $10.84
499+ $10.16
999+ $10.02
1999+ $9.89
2999+ $9.75
4999+ $9.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
UCPA
Bolt Hole Centres:
51.99mm = 2.047 (2-3/64) inch
Technical
d 3/4 inch
h 1-3/16"
a 3"
e 2-3/64"
b 1-9/16"
s M10
g 7/16"
w 2-7/16"
D 1/2"
Bi 1.2205"
n 0.5"
Bolt Size M10
Weight 0.64 kg
Dynamic load 1000 kgf
Static load 630 kgf
