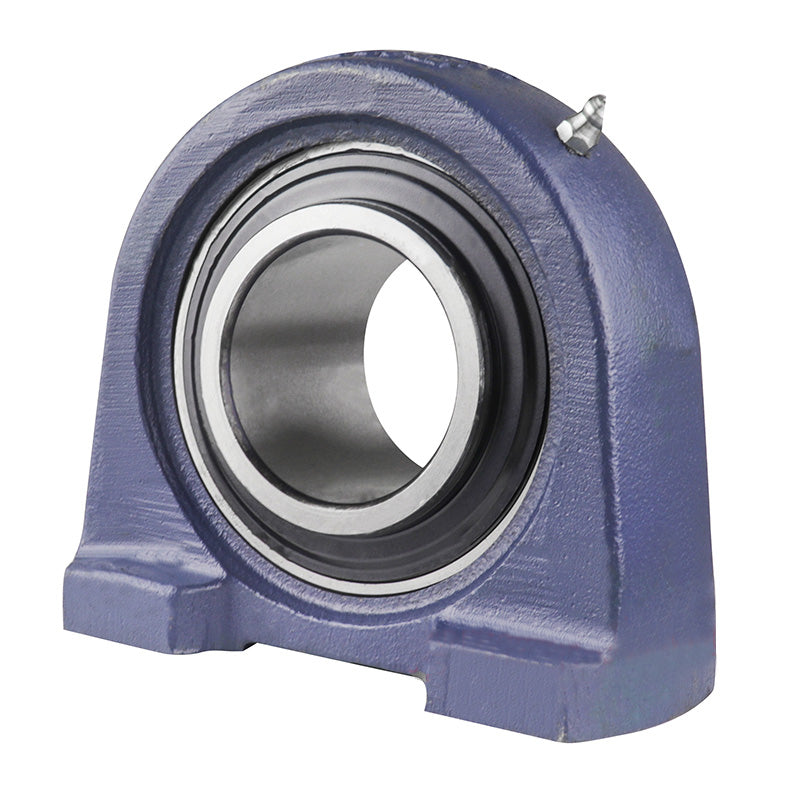

• UCPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert
1 1

SKU: UCPA.205

UCPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert

UCPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert
$15.73 ex VAT
$15.73 ex VAT
Sale Sold out

Equivalent to: SNP25

In stock

Price Break
3+ $10.54
4+ $9.95
9+ $9.83
19+ $9.71
49+ $9.59
99+ $9.47
499+ $8.88
999+ $8.76
1999+ $8.64
2999+ $8.53
4999+ $8.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Style:
UCPA
Bolt Hole Centres:
56mm
Technical
d 25mm
h 36.5mm
a 84mm
e 56mm
b 45mm
s M10
g 12mm
w 72mm
D 13mm
Bi 34mm
n 14.3mm
Bolt Size M10
Weight 0.83 kg
Dynamic load 1100 kgf
Static load 710 kgf
Rec max speed 6250 rpm
