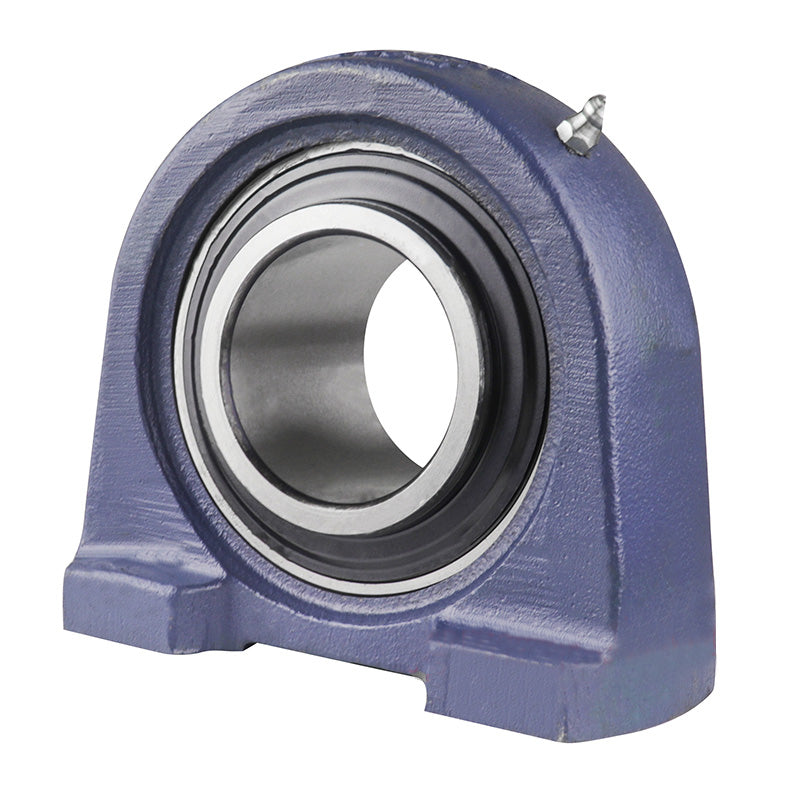

• UCPA205-14 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 7/8 inch Bore Insert
1 1

SKU: UCPA.205-14

UCPA205-14 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 7/8 inch Bore Insert

UCPA205-14 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 7/8 inch Bore Insert
$19.57 ex VAT
$19.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.11
4+ $12.37
9+ $12.22
19+ $12.08
49+ $11.93
99+ $11.78
499+ $11.05
999+ $10.90
1999+ $10.75
2999+ $10.60
4999+ $10.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Style:
UCPA
Bolt Hole Centres:
55.96mm = 2.203 (2-13/64) inch
Technical
d 7/8 inch
h 1-7/16"
a 3-5/16"
e 2-13/64"
b 1-25/32"
s M10
g 15/32"
w 2-27/32"
D 1/2"
Bi 1.3386"
n 0.5630"
Bolt Size M10
Weight 0.83 kg
Dynamic load 1100 kgf
Static load 710 kgf
