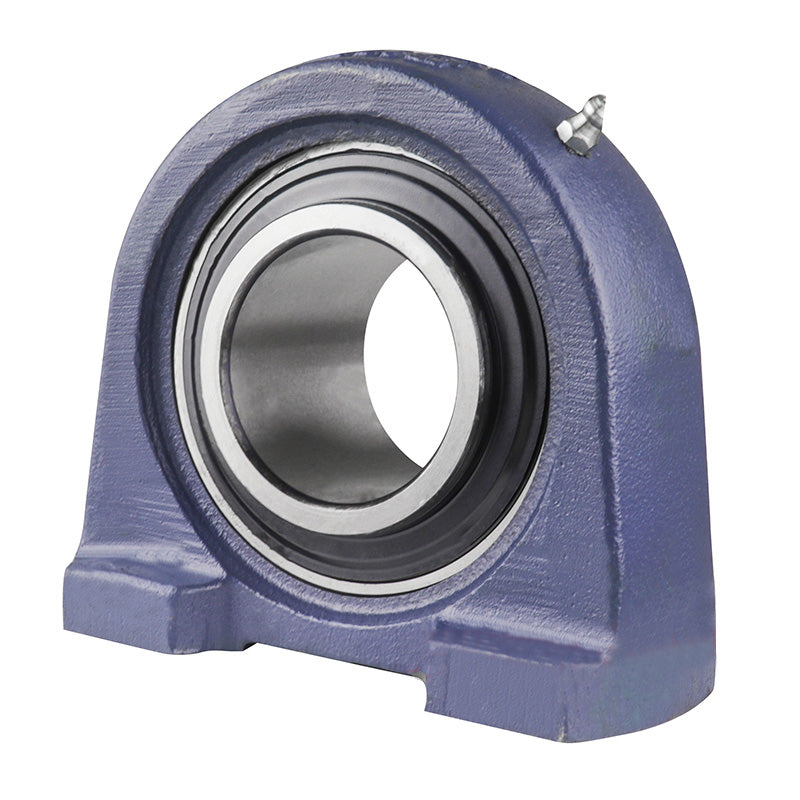

• UCPA205-16 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1 inch Bore Insert
1 1

SKU: UCPA.205-16

UCPA205-16 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1 inch Bore Insert

UCPA205-16 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1 inch Bore Insert
$15.73 ex VAT
$15.73 ex VAT
Sale Sold out

Equivalent to: SNP1

In stock

Price Break
3+ $10.54
4+ $9.95
9+ $9.83
19+ $9.71
49+ $9.59
99+ $9.47
499+ $8.88
999+ $8.76
1999+ $8.64
2999+ $8.53
4999+ $8.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25.4mm = 1 inch
Style:
UCPA
Bolt Hole Centres:
55.96mm = 2.203 (2-13/64) inch
Technical
d 1 inch
h 1-7/16"
a 3-5/16"
e 2-13/64"
b 1-25/32"
s M10
g 15/32"
w 2-27/32"
D 1/2"
Bi 1.3386"
n 0.5630"
Bolt Size M10
Weight 0.83 kg
Dynamic load 1100 kgf
Static load 710 kgf
Rec max speed 6250 rpm
