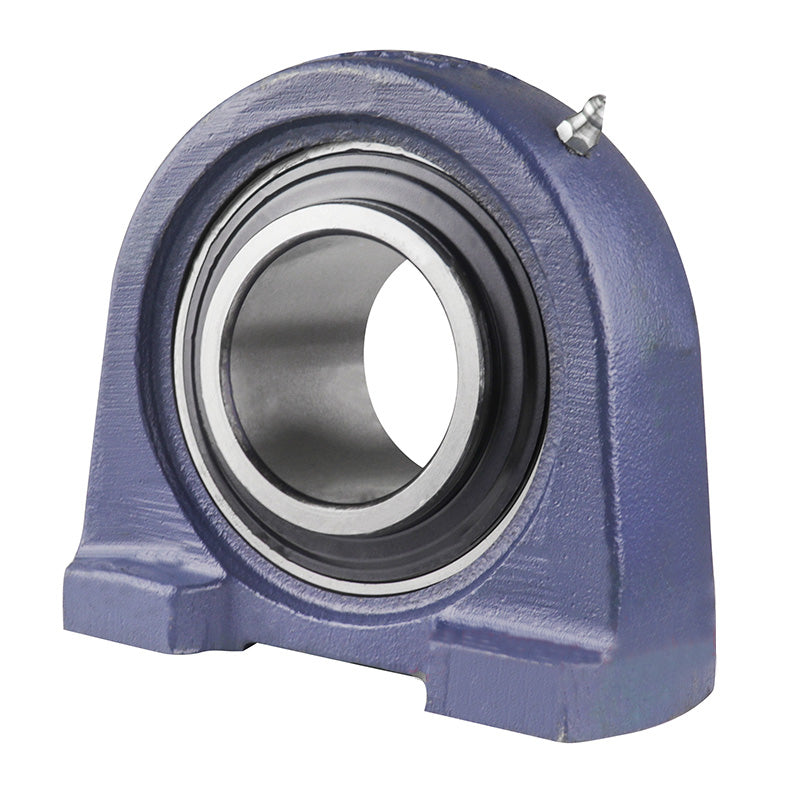

• UCPA206-18 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/8 inch Bore Insert
1 1

SKU: UCPA.206-18

UCPA206-18 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/8 inch Bore Insert

UCPA206-18 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/8 inch Bore Insert
$21.79 ex VAT
$21.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $14.60
4+ $13.78
9+ $13.61
19+ $13.45
49+ $13.29
99+ $13.12
499+ $12.30
999+ $12.14
1999+ $11.97
2999+ $11.81
4999+ $11.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Style:
UCPA
Bolt Hole Centres:
65.88mm = 2.594 (2-19/32) inch
Technical
d 1-1/8 inch
h 1-11/16"
a 3-11/16"
e 2-19/32"
b 1-31/32"
s M14
g 15/32"
w 3-5/16"
D 25/32"
Bi 1.5"
n 0.6260"
Bolt Size M14
Weight 1.2 kg
Dynamic load 1520 kgf
Static load 1020 kgf
