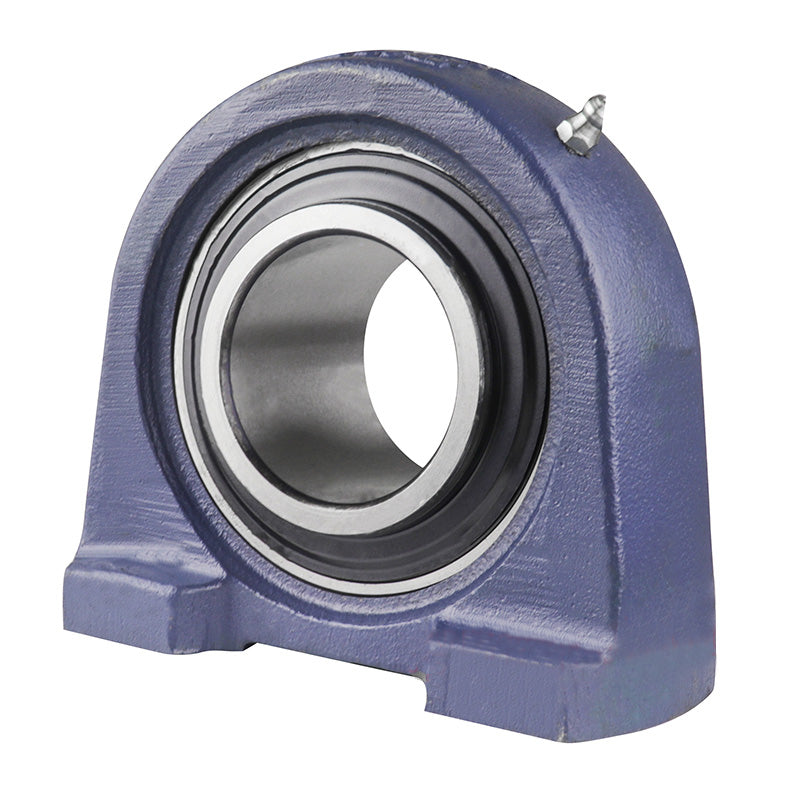

• UCPA206-19 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-3/16 inch Bore Insert
1 1

SKU: UCPA.206-19

UCPA206-19 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-3/16 inch Bore Insert

UCPA206-19 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-3/16 inch Bore Insert
$22.30 ex VAT
$22.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $14.93
4+ $14.09
9+ $13.93
19+ $13.76
49+ $13.59
99+ $13.42
499+ $12.58
999+ $12.42
1999+ $12.25
2999+ $12.08
4999+ $11.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
UCPA
Bolt Hole Centres:
65.88mm = 2.594 (2-19/32) inch
Technical
d 1-3/16 inch
h 1-11/16"
a 3-11/16"
e 2-19/32"
b 1-31/32"
s M14
g 15/32"
w 3-5/16"
D 25/32"
Bi 1.5"
n 0.6260"
Bolt Size M14
Weight 1.2 kg
Dynamic load 1520 kgf
Static load 1020 kgf
