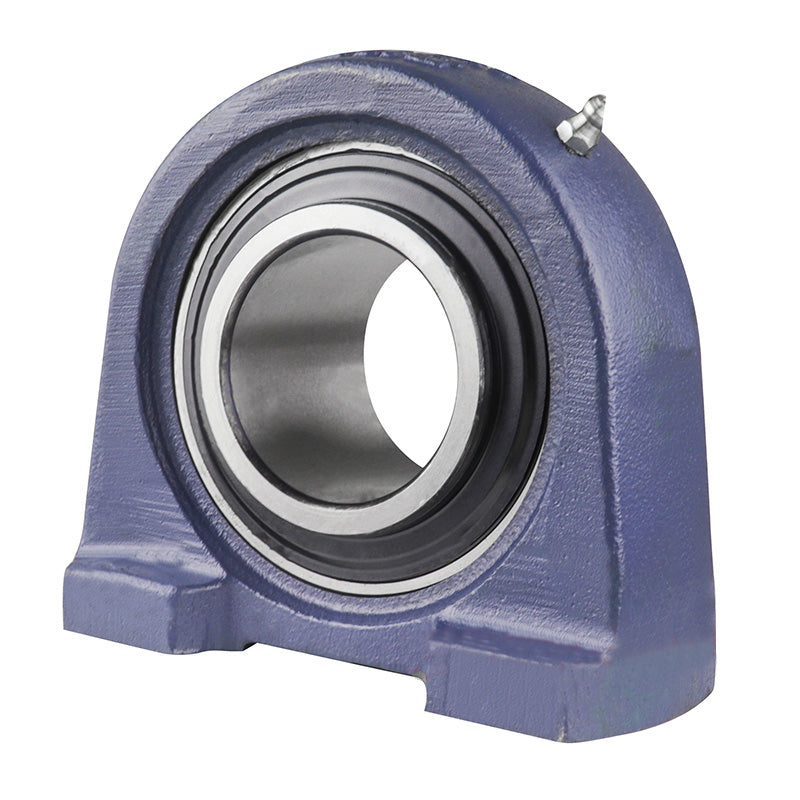

• UCPA207-20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/4 inch Bore Insert
1 1

SKU: UCPA.207-20

UCPA207-20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/4 inch Bore Insert

UCPA207-20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/4 inch Bore Insert
$31.42 ex VAT
$31.42 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.05
4+ $19.87
9+ $19.63
19+ $19.40
49+ $19.16
99+ $18.92
499+ $17.74
999+ $17.50
1999+ $17.27
2999+ $17.03
4999+ $16.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UCPA
Bolt Hole Centres:
80.17mm = 3.156 (3-5/32) inch
Technical
d 1-1/4 inch
h 1-7/8"
a 4-11/32"
e 3-5/32"
b 2-5/32"
s M14
g 1/2"
w 3-3/4"
D 25/32"
Bi 1.6890"
n 0.6890"
Bolt Size M14
Weight 1.7 kg
Dynamic load 2010 kgf
Static load 1390 kgf
